LUTH150
商品類別:日本原廠

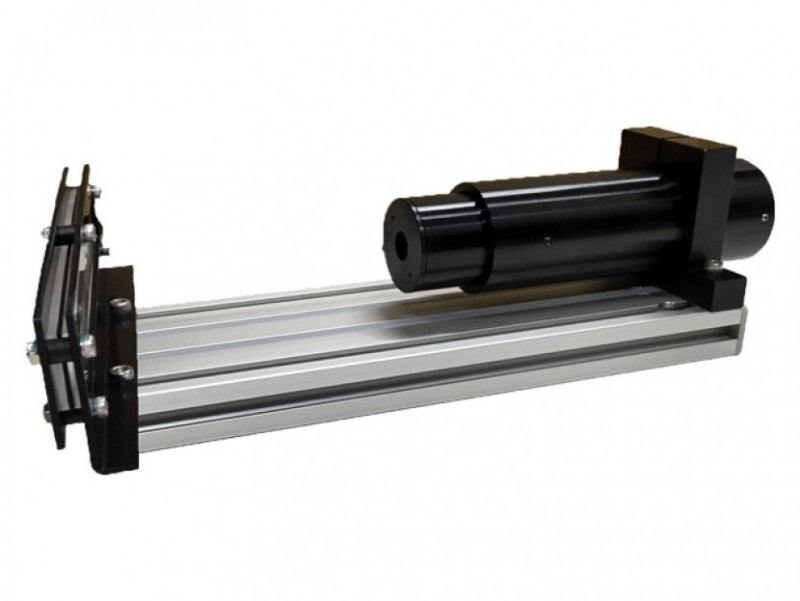

LUTH150 準直光系統(tǒng)對應 UTH150 UV 線掃描鏡頭
LUTH150 Fresnel Lighting System for UTH150 UV Line Scan Lens
規(guī)格 | |
Width Of Fresnel | 100mm |
Rod Prism Effective Width | 16.5mm |
Rod Prism NA | 0.138 |
Aperture Diameter (∅=1.0) | 7.8mm |
Aperture To Lens | 140.0mm |
Lens To Illuminated Plane | 90.0mm |
Corresponding Lens | UTH150 |
