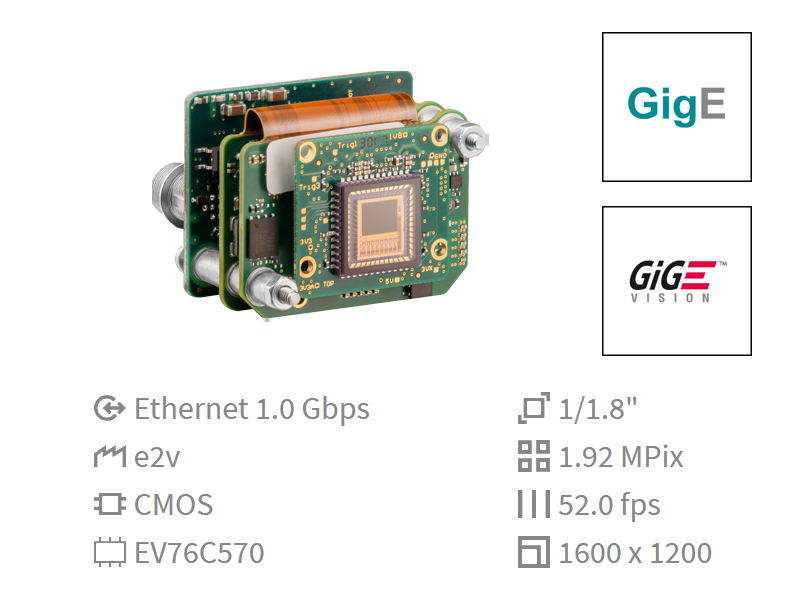

GV-5252SE-C Rev.4.2
商品類別：iDS Camera 工業(yè)相機
iDS Camera Ethernet SE系列 192萬畫素 彩色相機
1/1.8" CMOS Global Shutter Sensor
Resolution : 1600 × 1200 (1.92 Mega Pixel)
Pixel Size : 4.5um
Frame Rate : 52
Color
| Sensor | |
| Sensor Type | CMOS Color |
| Shutter | Global Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 1.9 MP |
| Resolution | 1600 × 1200 Pixel (1.92 Mpix) |
| Aspect Ratio | 4 : 3 |
| ADC | 10 bit |
| Color Depth (camera) | 10 bit |
| Optical Sensor Class | 1.1.8" |
| Optical Size | 7.200mm × 5.400mm |
| Optical Sensor Diagonal | 9mm (1/1.78") |
| Pixel Size | 4.5um |
| Manufacturer | e2v |
| Sensor Model | EV76C570ACT |
| Gain (master/RGB) | 4x / 4x |
| AOI Horizontal | same frame rate |
| AOI Vertical | increased frame rate |
| AOI Image Width / Step Width | 256 / 2 |
| AOI Image Height / Step Width | 2 / 2 |
| AOI Position Grid (Horizontal / Vertical) | 2 / 2 |
| Binning Horizontal | same frame rate |
| Binning Vertical | same frame rate |
| Binning Method | M / C automatic |
| Binning Factor | 2 / 4 / 8 |
| Subsampling Horizontal | same frame rate |
| Subsampling Vertical | same frame rate |
| Subsampling Method | M / C automatic |
| Subsampling Factor | 2 , 4 , 8 |
| Model | |
| Frame Rate Freerun Mode | 52 fps |
| Frame Rate Trigger (continuous) | 52 fps |
| Frame Rate Trigger (maximum) | 52 fps |
| Exposure Time (minimum ~ maximum) | 0.020ms ~ 181ms |
| Power Consumption | 1.7W ~ 2.4W |
| Image Memory | 128 MB |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 20% ~ 80% |
| Connectors | |
| Interface Connector | GigE RJ45 |
| I/O Connector | 8 Pin Hirose Connector |
| Power Supply | 12V ~ 24V or PoE |
| Design | |
| Lens Mount | - |
| IP Code | - |
| Dimensions H/W/L | 31.5mm × 40.0mm × 30.0mm |
| Mass | 36g |
