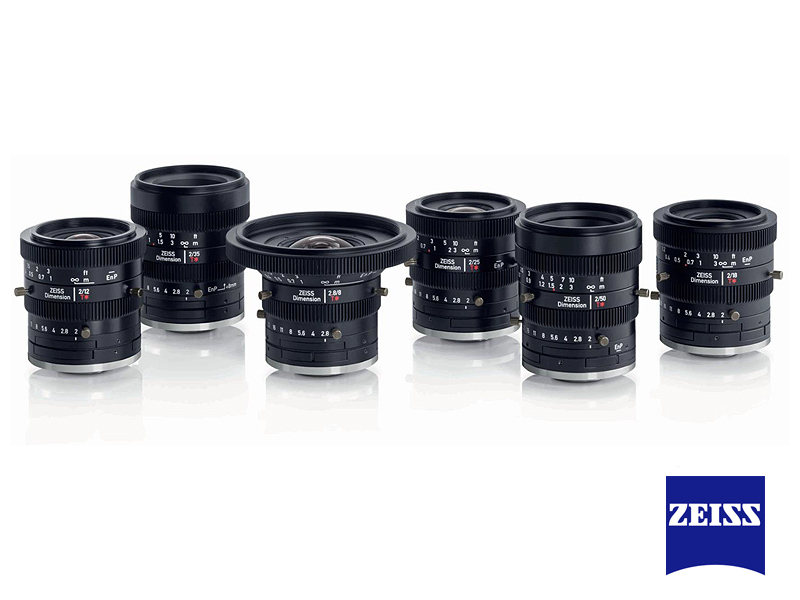

ZEISS Dimension Lenses
商品類別：ZEISS 機器視覺工業鏡頭
High precision lenses for greater efficiency
堅固輕巧外型中仍提供最出色成像品質
精確可調的法蘭距(FFD)和刻度方向
高質感金屬外殼可抵抗惡劣的氣候條件
蔡司T*鍍膜允許在可見光和近紅外線長的寬光譜傳輸
鎖固螺絲可抗衝擊和抗震動
■ Mount : C-mount
■ Sensor Format : 線掃描最大支援 21.6mm，面掃描最大支援 17.3×13.0mm (4/3" 感測器)
■ Resolution : 對比度30%時，像素解析度 2.0um
| Product | Focal length | Aperture | Min. object distance* | Max. magnification ratio | Min. working distance* | Filter threas |
| Dimension 2.8/8 | 8mm | 2.8 - 22 | 180.6mm | 1 : 14.3 | 102mm | M72 × 0.75 |
| Dimension 2/12 | 12mm | 2 - 22 | 180.4mm | 1 : 10.0 | 101mm | M43 × 0.75 |
| Dimension 2/18 | 18mm | 2 - 22 | 170.5mm | 1 : 5.6 | 91mm | M43 × 0.75 |
| Dimension 2/25 | 25mm | 2 - 22 | 231.9mm | 1 : 6.3 | 153mm | M43 × 0.75 |
| Dimension 2/35 | 35mm | 2 - 22 | 288.6mm | 1 : 5.6 | 209mm | M49 × 0.75 |
| Dimension 2/50 | 50mm | 2 - 22 | 390.3mm | 1 : 5.5 | 311mm | M49 × 0.75 |
