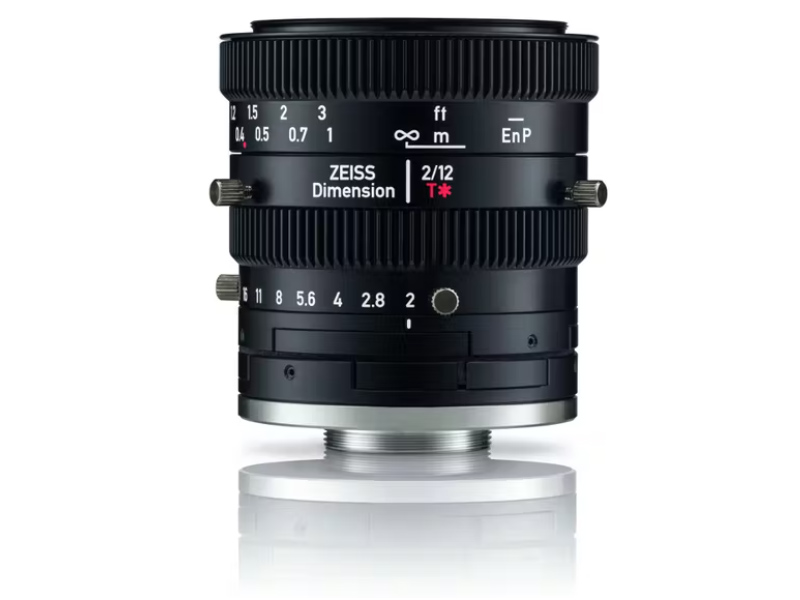

ZEISS Dimension 2/12
商品類別：ZEISS 機器視覺工業(yè)鏡頭
ZEISS Dimension Lenses - High precision for greater efficiency
Focal Length : 12mm
Max. Aperture : 2.0
Min. Free Working Distance : 101.0mm
Filter Thread : M43 × 0.75
Camera Mount : C-Mount
Features
● fast f/2 aperture
● excellent image quality, leading to highest data precision over the complete image field
● for industrial cameras up to sensor sizes of 4/3’’
● robust full-metal construction made of aluminium
● small and compact
● possibility to adjust the back focal distance to compensate for tolerances of camera bayonets
● possibility for azimuthal adjustment ensures best possible readability of scales
● fixable focus and aperture settings
● optimized spectral transmission in VIS and near IR range through ZEISS T* coating
Optical data
| Focal length | 12mm |
| Aperture range | f/2 – f/22 (continuous) |
| Number of elements / groups | 13 / 9 |
| Focus range (object to sensor) | 180.4mm (0.59 ft.) – ∞ |
| Min. free working distance | 101.0mm (0.33 ft.) |
| Angular field (diag. / horiz. / vert.) | 1’’: 65.94° / 56.73° / 39.55° ; 4/3’’: 82.53° / 70.51° / 56.00° |
| Max. diameter of image field | 1’’: 16mm (0.63’’) ; 4/3’’: 21.64mm (0.83’’) |
| Flange focal distance (in air) | 17.526mm (0.69’’) , C mount |
| Coverage at close range | 1’’: 133.9mm × 88.7mm (5.27 × 3.49’’) ; 4/3’’: 176.5mm × 131.8mm (6.95 × 5.19’’) |
| Image ratio at close range | 1:10 |
| Position of entrance pupil (relative to image sensor) | 63.8mm (2.51”) |
| Position of exit pupil (relative to image sensor) | 38.9mm (1.53”) |
Physical data
| Length (front to mount contact surface) (at inf.) | 60.0mm (2.36”) |
| Length (front to mount contact surface) (at MOD) | 60.0mm (2.36”) |
| Diameter (lens only) | 57.0mm (2.24”) |
| Diameter (with fixation screws) | 64.0mm (2.52”) |
| Filter-thread | M43 × 0.75 |
| Weight | 264g (0.58 lbs) |
| Camera mount | C mount |

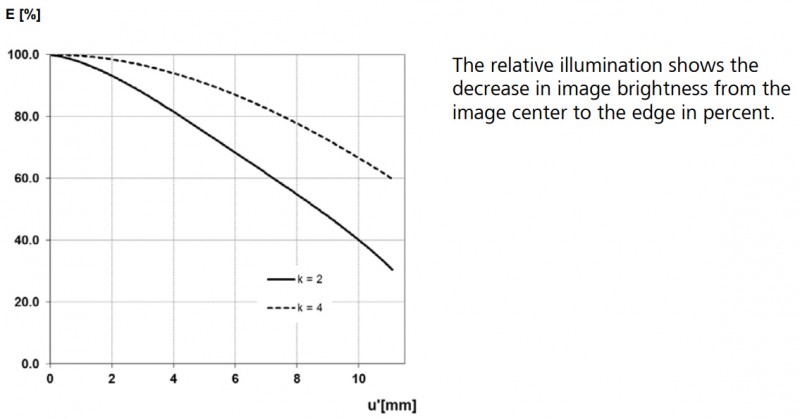

Relative Illuminance*

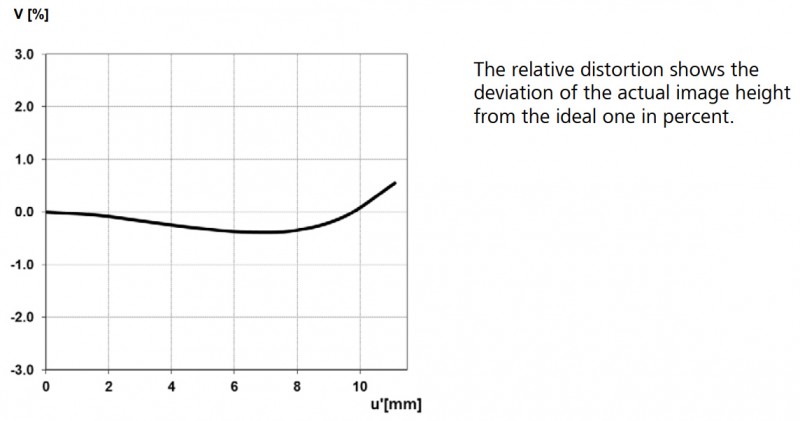

Relative Distortion*

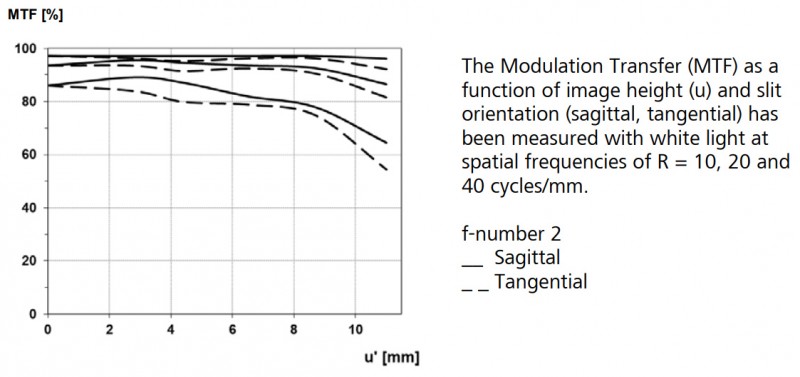

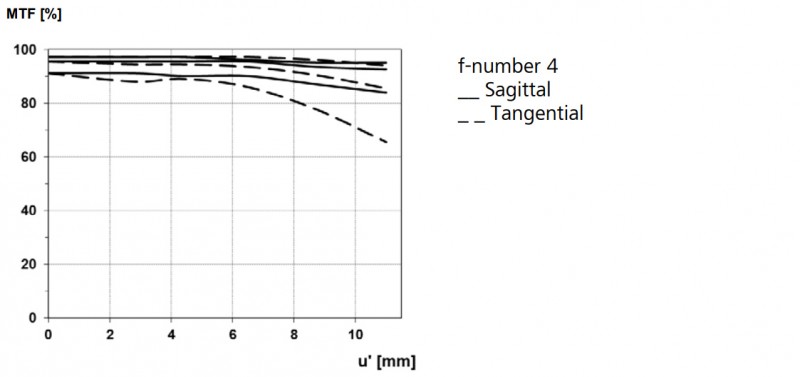

MTF Charts*
* Data for infinite focus setting

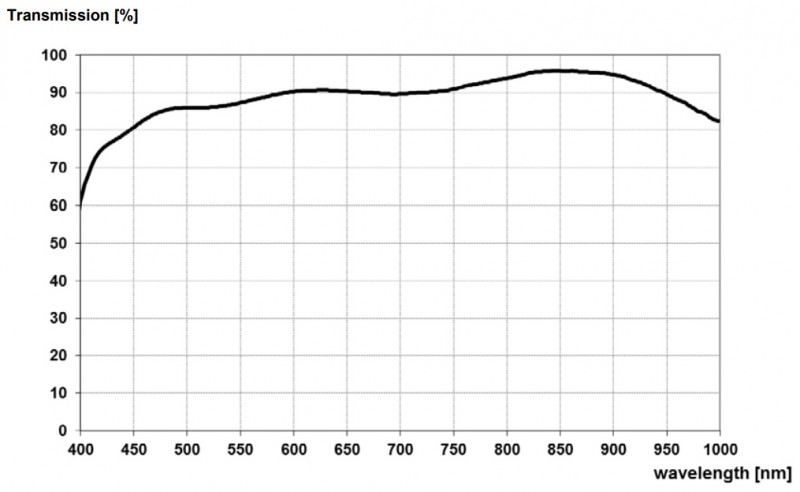

Spectral Transmission
