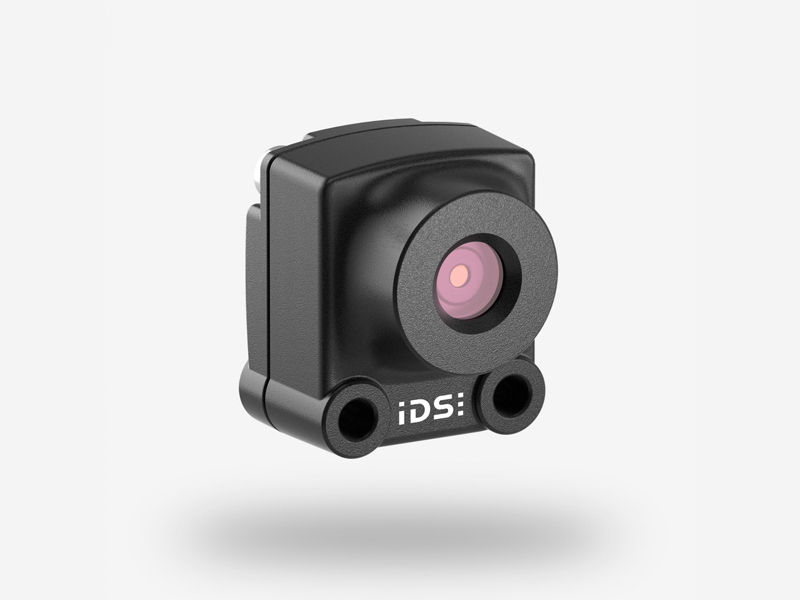

UI-1007XS-C Rev.1.1
商品類別：iDS Camera 工業(yè)相機
USB 2.0 輕型智能XS系列自動對焦工業(yè)相機，具有多種功能應用的理想選擇
1/4" CMOS Rolling Shutter Sensor
Resolution : 2592 × 1944
Pixel Size : 1.4um
Frame Rate : 15
Color
| Sensor | |
| Sensor Type | CMOS Color |
| Shutter | Rolling Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 5 MP |
| Resolution | 2592 × 1944 Pixel (5.04 Mpix) |
| Aspect Ratio | 4 : 3 |
| ADC | 10 bit |
| Color Depth (camera) | 8 bit |
| Optical Sensor Class | 1/4" |
| Optical Size | 3.629mm × 2.722mm |
| Optical Sensor Diagonal | 4.54mm (1/3.53") |
| Pixel Size | 1.4um |
| Manufacturer | OmniVision |
| Sensor Model | OV5640 |
| Gain (master/RGB) | 6.6x / - |
| AOI Horizontal | - |
| AOI Vertical | - |
| AOI Image Width / Step Width | - / - |
| AOI Image Height / Step Width | - / - |
| AOI Position Grid (Horizontal / Vertical) | - / - |
| Binning Horizontal | - |
| Binning Vertical | - |
| Binning Method | - |
| Binning Factor | - |
| Subsampling Horizontal | - |
| Subsampling Vertical | - |
| Subsampling Method | - |
| Subsampling Factor | - |
| Model | |
| Pixel Clock Range | 9 MHz ~ 35 MHz |
| Frame Rate Freerun Mode (in 8-bit mode) | 15 fps |
| Frame Rate Trigger (maximum) | - |
| Exposure Time (minimum ~ maximum) | 0.126ms ~ 1170ms |
| Power Consumption | 0.2W ~ 1W |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 20% ~ 80% |
| Connectors | |
| Interface Connector | USB 2.0 mini-B |
| I/O Connector | - |
| Power Supply | USB Cable |
| Design | |
| Lens Mount | - |
| IP Code | IP30 |
| Dimensions H/W/L | 26.6mm × 22.9mm × 21.7mm |
| Mass | 12g |
