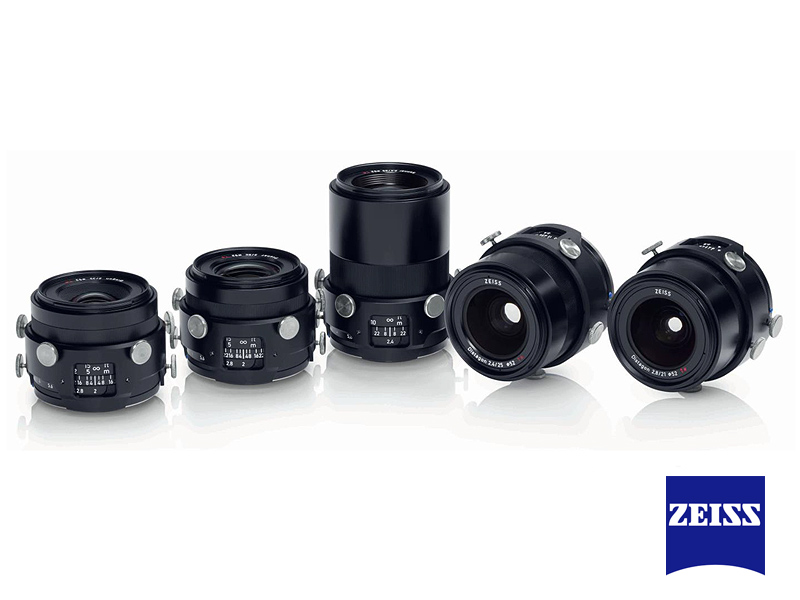

ZEISS Interlock Compact Lenses
商品類別：ZEISS 機器視覺工業鏡頭
Compact lenses for large sensors
輕量化與堅固耐用 , 出色的圖像質量
全金屬外殼和對焦環
用於鎖定對焦和光圈值的精密鎖固螺絲
高分辨率 / 高解析相機鏡頭
透過抑制雜散光實現精確高對比度
■ Mount : E-mount , M42×1-mount (for 18mm FFD)
■ Sensor Format : 線掃描最大支援 43mm(4K~8K)，面掃描最大支援36×24mm (4200萬畫素)
■ Resolution : 解析度 2.5um (對比度30%)
| Product | Focal length | Aperture | Min. object distance* | Max. magnification ratio | Min. working distance* | Filter threas |
| Interlock Compact 2.8/21 | 21mm | 2.8 - 22 | 250mm | 1 : 7.8 | 160mm | M52 × 0.75 |
| Interlock Compact 2.4/25 | 25mm | 2.4 - 22 | 250mm | 1 : 6.4 | 163mm | M52 × 0.75 |
| Interlock Compact 2/35 | 35mm | 2.0 - 22 | 300mm | 1 : 5.8 | 230mm | M52 × 0.75 |
| Interlock Compact 2/50 | 50mm | 2.0 - 22 | 450mm | 1 : 6.9 | 370mm | M52 × 0.75 |
| Interlock Compact 2.4/85 | 85mm | 2.4 - 22 | 800mm | 1 : 7.2 | 685mm | M52 × 0.75 |
