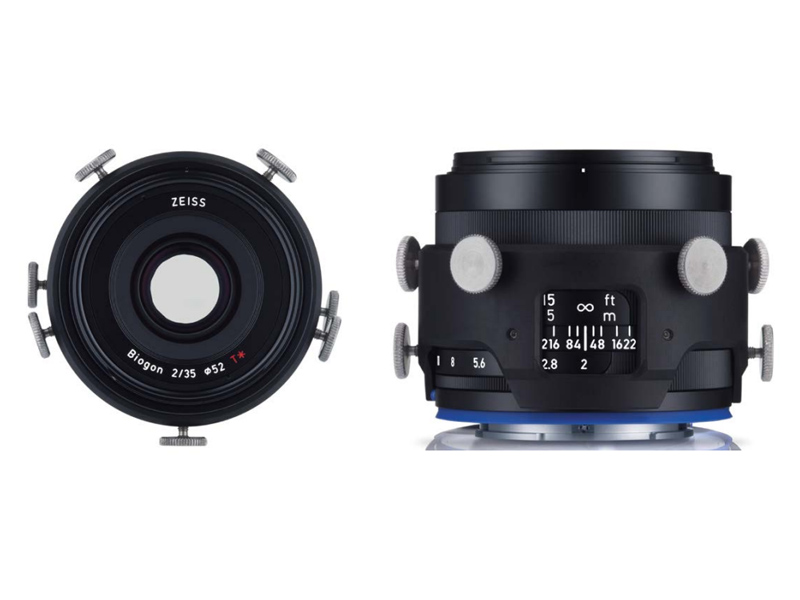

ZEISS Interlock Compact 2/35
商品類(lèi)別：ZEISS 機(jī)器視覺(jué)工業(yè)鏡頭
ZEISS Interlock Compact Lenses - Compact lenses for large image circles
Focal Length : 35mm
Max. Aperture : 2.0
Min. Free Working Distance : 230mm
Filter Thread : M52 × 0.75
Camera Mount : M42 Mount / 18.0mm FFD
Features
● Very compact but suitable to large image format
● For industrial cameras up to sensor sizes of 24×36 mm or 41mm line sensors
● Fast f/2.0 aperture
● Precise manual focusing
● Robust full-metal construction
● Features special screws to fix focus and aperture settings even in rough situations
● Due to light weight resistant against vibrations and shocks
● Literally free of distorsion
Optical data
| Focal length | 35mm |
| Aperture range | f/2.0 – f/22 |
| Number of elements / groups | 9 / 6 |
| Min. working distance (object to sensor) | 300mm (0.98 ft.) – ∞ |
| Min. free working distance | 230mm (0.75 ft.) – ∞ |
| Angular field* (diag. / horiz. / vert.) | 63 / 54 / 38° |
| Max. diameter of image field | 43.0mm (1.7") |
| Flange focal length | 18.0mm |
| Coverage at close range | 208 × 139mm (8.2 × 5.5") ; line 237mm (9.3”) |
| Image ratio at close range | 1:5.8 |
| Filter-thread | M52 × 0.75 |
| Weight | 394g (0.87 lbs.) |
| Camera mount | M42 (18.0mm FFD) |
* referring to 24 × 36 mm format resp. 43mm line

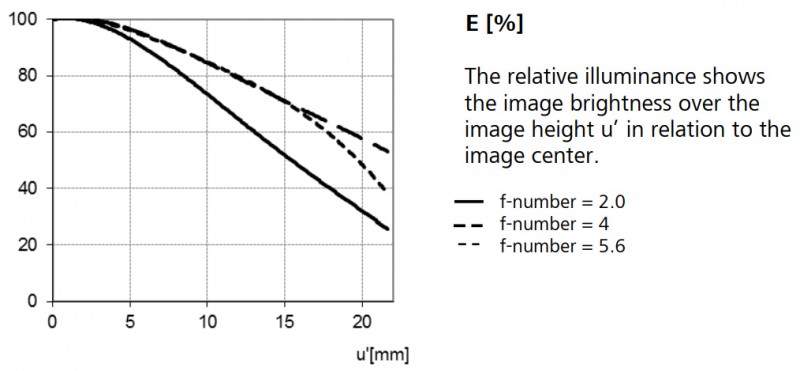

Relative Illuminance*

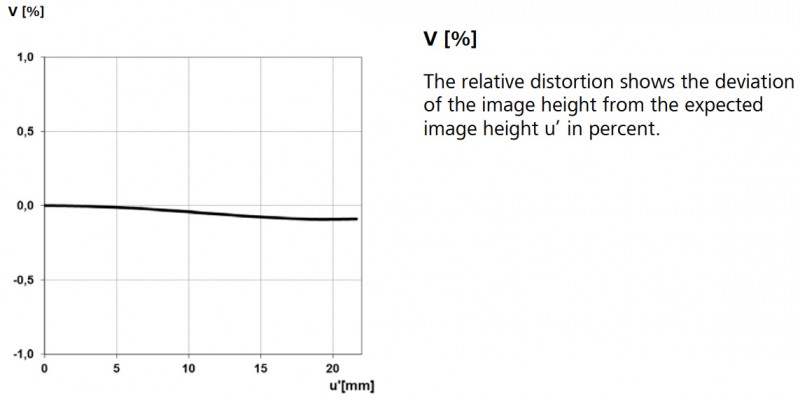

Relative Distortion*
* Data for infinite focus setting

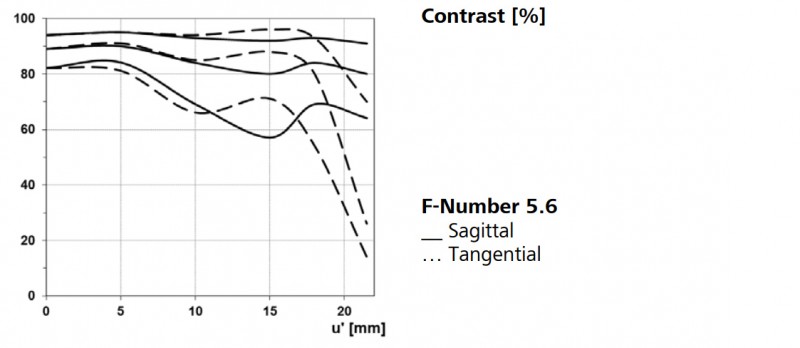

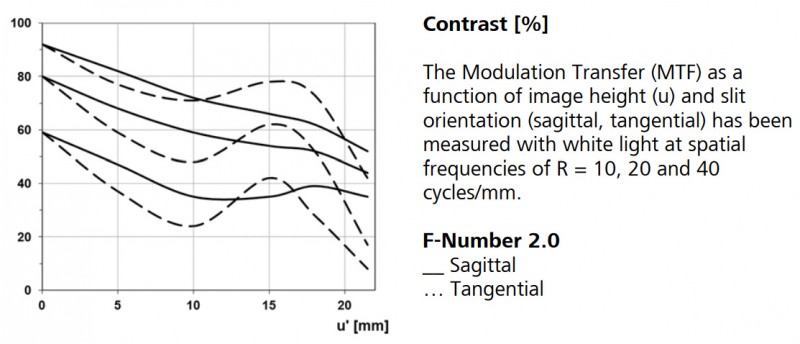

MTF Charts*
* Data for infinite focus setting

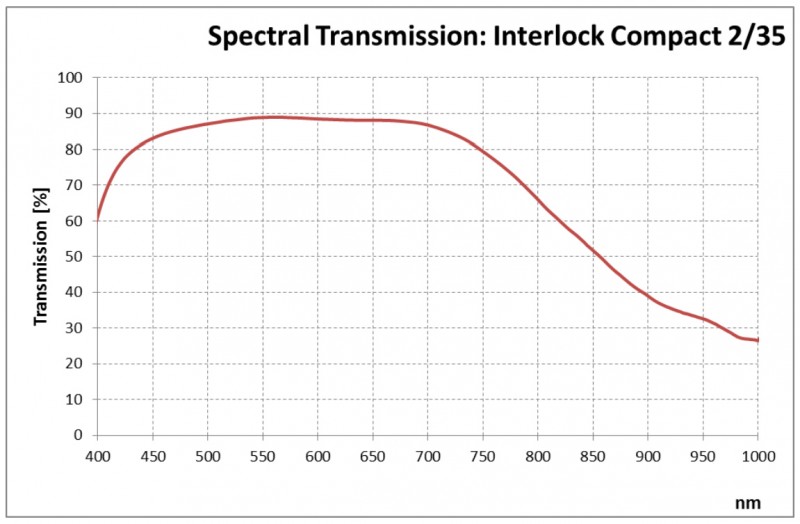

Spectral Transmission
