LFLH100
商品類別：日本原廠

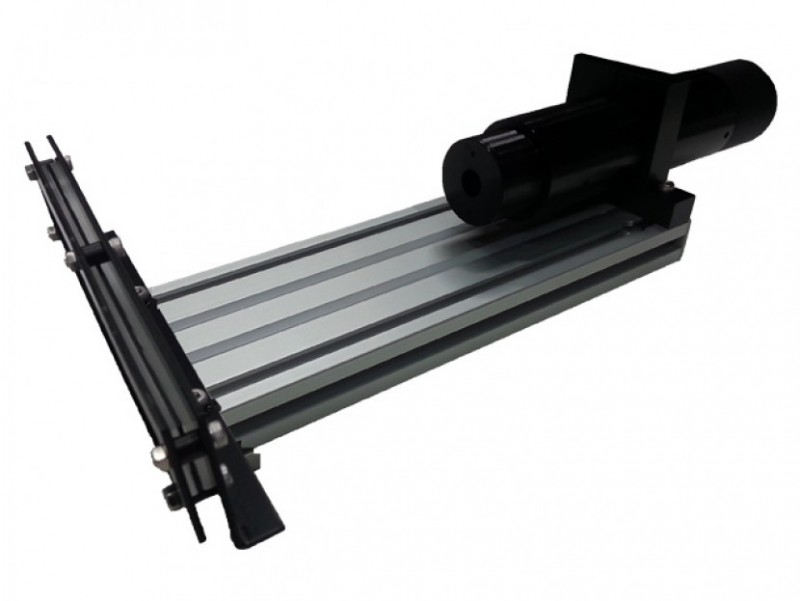

LFLH100 準(zhǔn)直光系統(tǒng)對應(yīng) FLH100 線掃描鏡頭
LFLH100 Fresnel Lighting System for FLH100 Line Scan Lens
| 規(guī)格 | |
| Width Of Fresnel | 114mm |
| Rod Prism Effective Width | 18.5mm |
| Rod Prism NA | 0.188 |
| Aperture Diameter (∅=1.0) | 10.2mm |
| Aperture To Lens | 117.0mm |
| Lens To Illuminated Plane | 60.0mm |
| Object L/P [lp/mm] | 71.43 |
| Image L/P [lp/mm] | 71.43 |
| Line / Cell [cell] | 1.40 |
| MTF Value (Standard Lighting System) | 34% (透射參考值) |
| MTF Value (Fresnel Lighting System) | 53% (透射參考值) |
| Corresponding Lens | FLH100 |
