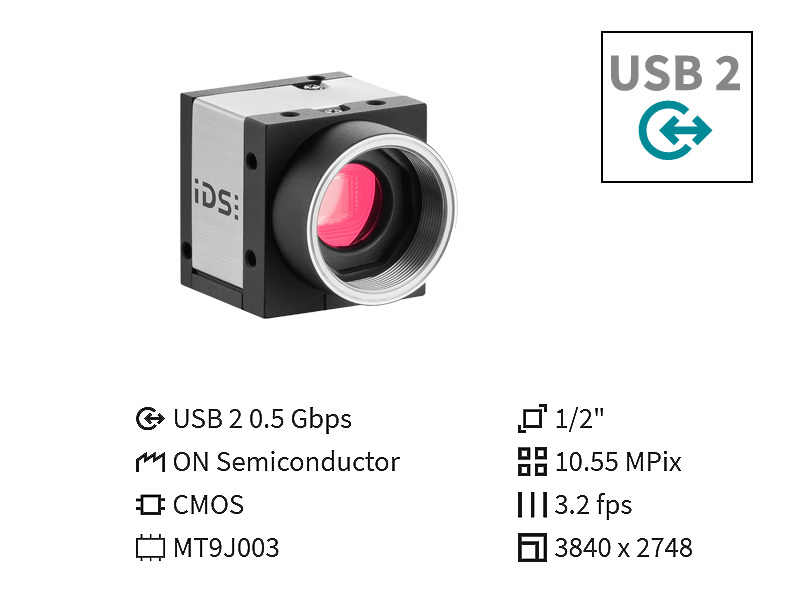

UI-1490SE-M-GL
商品類別：iDS Camera 工業(yè)相機(jī)
iDS Camera USB 2.0 SE系列 1055萬(wàn)畫素 黑白相機(jī)
1/2" CMOS Rolling Shutter Sensor
Resolution : 3840 × 2748 (10.55 Mega Pixel)
Pixel Size : 1.67um
Frame Rate : 3.2
Mono
| Sensor | |
| Sensor Type | CMOS Mono |
| Shutter | Rolling Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 10 MP |
| Resolution | 3840 × 2748 Pixel (10.55 Mpix) |
| Aspect Ratio | 4 : 3 |
| ADC | 12 bit |
| Color Depth (camera) | 8 bit |
| Optical Sensor Class | 1/2" |
| Optical Size | 6.413mm × 4.589mm |
| Optical Sensor Diagonal | 7.89mm (1/2.03") |
| Pixel Size | 1.67um |
| Manufacturer | Onsemi |
| Sensor Model | MT9J003STM |
| Gain (master/RGB) | 8.5x / - |
| AOI Horizontal | increased frame rate |
| AOI Vertical | increased frame rate |
| AOI Image Width / Step Width | 448 / 4 |
| AOI Image Height / Step Width | 4 / 2 |
| AOI Position Grid (Horizontal / Vertical) | 4 / 2 |
| Binning Horizontal | increased frame rate |
| Binning Vertical | increased frame rate |
| Binning Method | Color |
| Binning Factor | 2 |
| Subsampling Horizontal | increased frame rate |
| Subsampling Vertical | increased frame rate |
| Subsampling Method | Color |
| Subsampling Factor | 2 , 4 |
| Model | |
| Pixel Clock Range | 5 MHz ~ 36 MHz |
| Frame Rate Freerun Mode | 3.2 fps |
| Frame Rate Trigger (maximum) | 3.2 fps |
| Exposure Time (minimum ~ maximum) | 0.340ms ~ 14582ms |
| Power Consumption | 0.5W ~ 1.3W |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 20% ~ 80% |
| Connectors | |
| Interface Connector | USB 2.0 mini-B , Screwable |
| I/O Connector | 9 Pin micro D-Sub socket |
| Power Supply | USB cable |
| Design | |
| Lens Mount | C-Mount |
| IP Code | IP30 |
| Dimensions H/W/L | 34.0mm × 32.0mm × 41.3mm |
| Mass | 65g |
