N36-1604-16

商品類別:iDS Ensenso

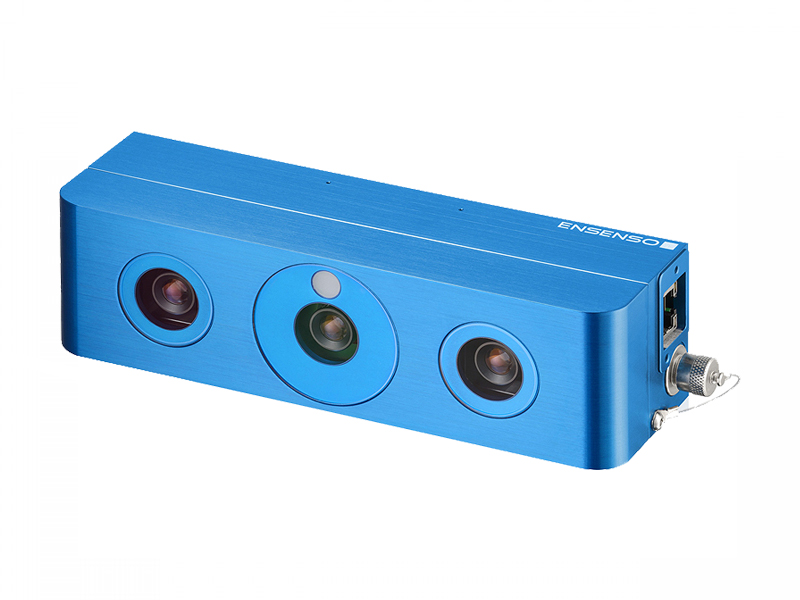

IDS Ensenso N36系列 3D 立體視覺相機

Lenses - Focal Length : 16mm

Lenses - Relative Aperture : 1.6

Vergence Angle : 4.0°

Focus Distance : 750mm

Operating Distance : 700mm ~ 800mm

Optics N36-1604-16
Lenses - Focal Length16mm
Lenses - Relative Aperture1.6
Vergence Angle4.0°
Baseline (Pupillary Distance)100mm
Focus Distance
750mm
Operating Distance
700 ~ 800 (mm)
Calibration Plate - Dimensions100 × 100 × 1 (mm)
Calibration Plate - Grid Dots / Grid Spacing15 × 15 / 12mm



Specifications N36 Series
Dimensions175 × 50 × 52 (mm)
Weight650g
Resolution1936 × 1216 (2.3 MP)
Frames per Second10 (2.3 MP) , 30 (2 × Binning)
InterfaceGigabit Ethernet
Inputs1 × Trigger
Outputs1 × Flash / GPIO
Input Voltage12V ~ 24V DC / PoE
Housing - ProjectorAluminium , IP65 / 67
Temperature - Operation0°C ~ 40°C
Temperature - Storage0°C ~ 50°C
Vibration Resistance30 ~ 500 Hz 10g (sine)
Shock Resistance80g , 1.9ms / 25g , 6ms (half sine)
SoftwareEnsenso SDK

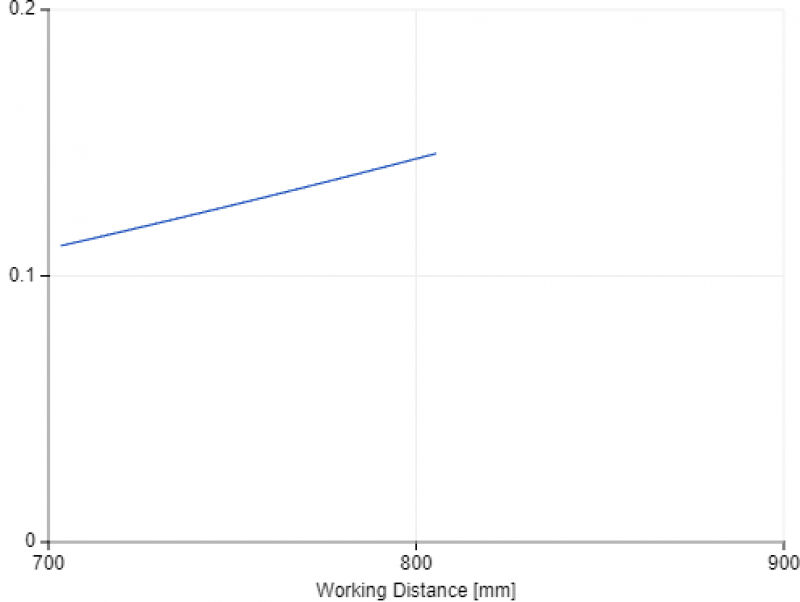

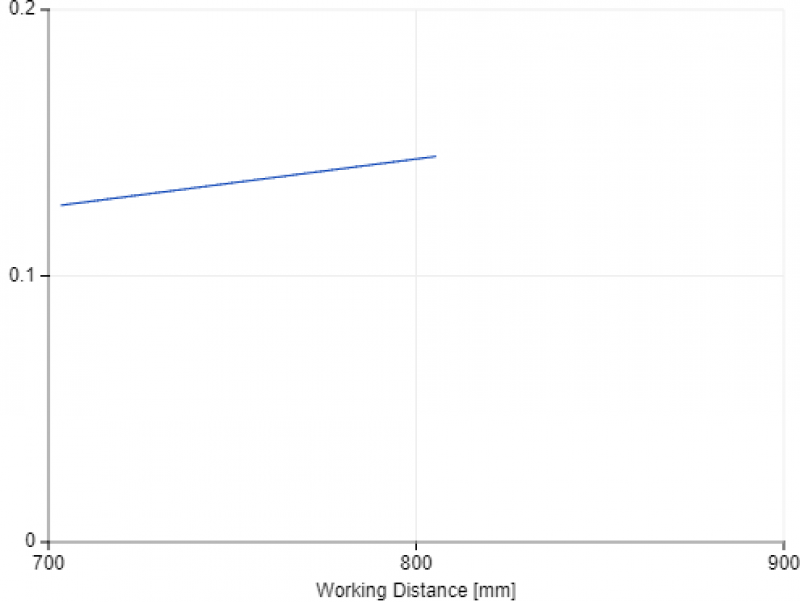

IDS Ensenso N36-1604-16 數據圖

Z-Accuracy (mm)XY Pixel Size (mm)
Z-AccuracyXY Pixel Size

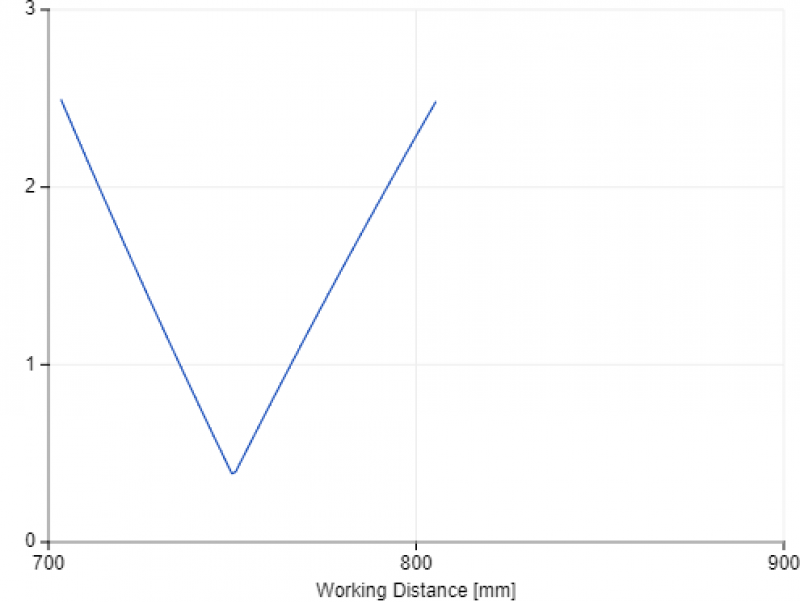

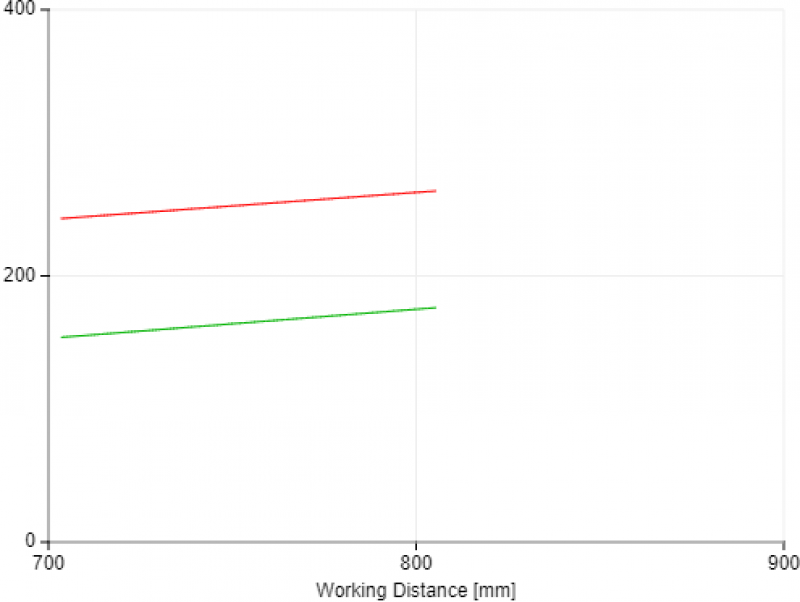

View Field (mm)Optics Blur (px)
View Field WidthOptics Blur



IDS Ensenso N36-1604-16 數據表

Distance (mm)Z-Accuracy (mm)XY Pixel Size (mm)View Field X (mm)View Field Y (mm)Optics Blur (px)
7500.1270.135252.56164.010.381
8000.1440.144262.73174.952.289
