N31-810-16

商品類別:iDS Ensenso

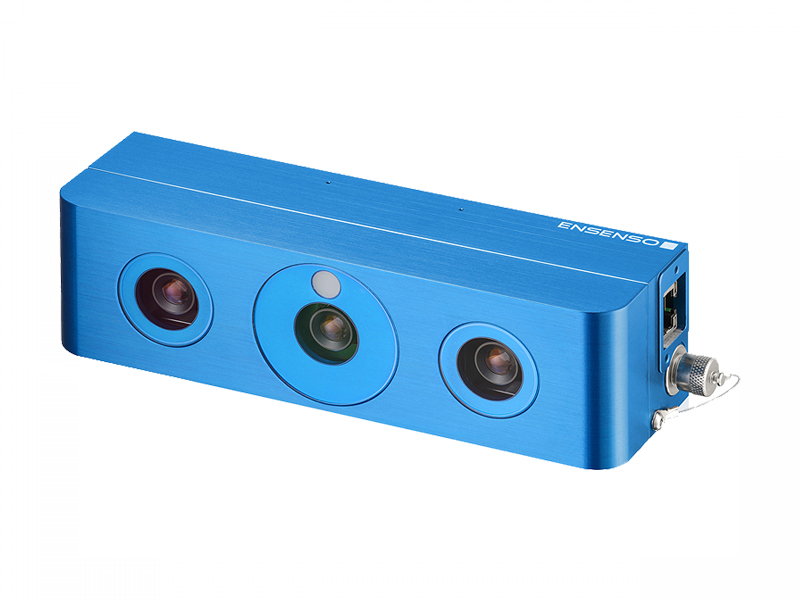

IDS Ensenso N31系列 3D 立體視覺相機

Lenses - Focal Length : 8mm

Lenses - Relative Aperture : 1.6

Vergence Angle : 10.0°

Focus Distance : 250mm

Operating Distance : 240mm ~ 260mm

Optics N31-810-16
Lenses - Focal Length8mm
Lenses - Relative Aperture1.6
Vergence Angle10.0°
Baseline (Pupillary Distance)100mm
Focus Distance
250mm
Operating Distance
240 ~ 260 (mm)
Calibration Plate - Dimensions100 × 100 × 1 (mm)
Calibration Plate - Grid Dots / Grid Spacing15 × 15 / 12mm



Specifications N31 Series
Dimensions175 × 50 × 52 (mm)
Weight650g
Resolution1936 × 1216 (2.3 MP)
Frames per Second10 (2.3 MP) , 30 (2 × Binning)
InterfaceGigabit Ethernet
Inputs1 × Trigger
Outputs1 × Flash / GPIO
Input Voltage12V ~ 24V DC / PoE
Housing - ProjectorAluminium , IP65 / 67
Temperature - Operation0°C ~ 40°C
Temperature - Storage0°C ~ 50°C
Vibration Resistance30 ~ 500 Hz 10g (sine)
Shock Resistance80g , 1.9ms / 25g , 6ms (half sine)
SoftwareEnsenso SDK



IDS Ensenso N31-810-16 數據圖

Z-Accuracy (mm)XY Pixel Size (mm)
Z-AccuracyXY Pixel Size

View Field (mm)Optics Blur (px)
View Field WidthOptics Blur



IDS Ensenso N31-810-16 數據表

Distance (mm)Z-Accuracy (mm)XY Pixel Size (mm)View Field X (mm)View Field Y (mm)Optics Blur (px)
2500.0660.106198.44129.201.610
2600.0720.111202.37134.372.378
