N31-606-16
商品類別：iDS Ensenso
IDS Ensenso N31系列 3D 立體視覺相機
Lenses - Focal Length : 6mm
Lenses - Relative Aperture : 1.6
Vergence Angle : 6.0°
Focus Distance : 330mm
Operating Distance : 280mm ~ 420mm
| Optics N31-606-16 | |
| Lenses - Focal Length | 6mm |
| Lenses - Relative Aperture | 1.6 |
| Vergence Angle | 6.0° |
| Baseline (Pupillary Distance) | 100mm |
Focus Distance | 330mm |
Operating Distance | 280 ~ 420 (mm) |
| Calibration Plate - Dimensions | 200 × 200 × 3 (mm) |
| Calibration Plate - Grid Dots / Grid Spacing | 15 × 15 / 24mm |
| Specifications N31 Series | |
| Dimensions | 175 × 50 × 52 (mm) |
| Weight | 650g |
| Resolution | 1936 × 1216 (2.3 MP) |
| Frames per Second | 10 (2.3 MP) , 30 (2 × Binning) |
| Interface | Gigabit Ethernet |
| Inputs | 1 × Trigger |
| Outputs | 1 × Flash / GPIO |
| Input Voltage | 12V ~ 24V DC / PoE |
| Housing - Projector | Aluminium , IP65 / 67 |
| Temperature - Operation | 0°C ~ 40°C |
| Temperature - Storage | 0°C ~ 50°C |
| Vibration Resistance | 30 ~ 500 Hz 10g (sine) |
| Shock Resistance | 80g , 1.9ms / 25g , 6ms (half sine) |
| Software | Ensenso SDK |
IDS Ensenso N31-606-16 數(shù)據(jù)圖

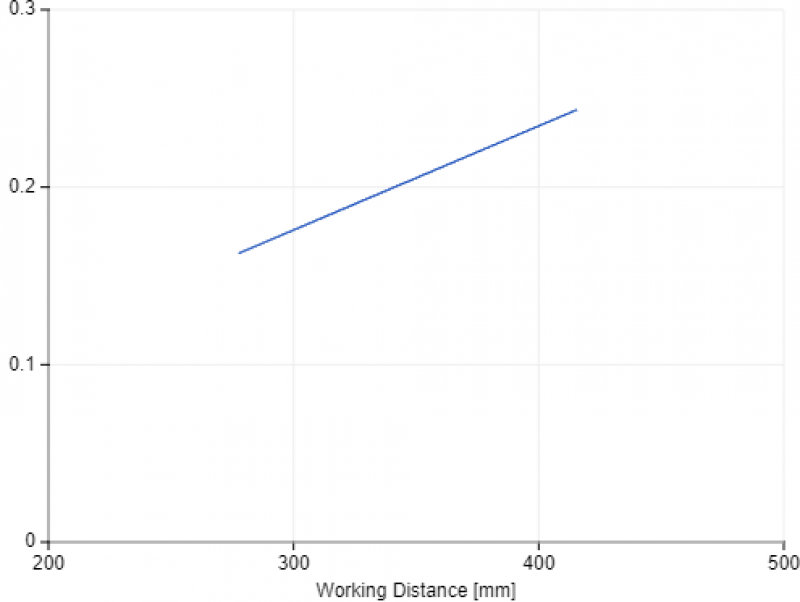

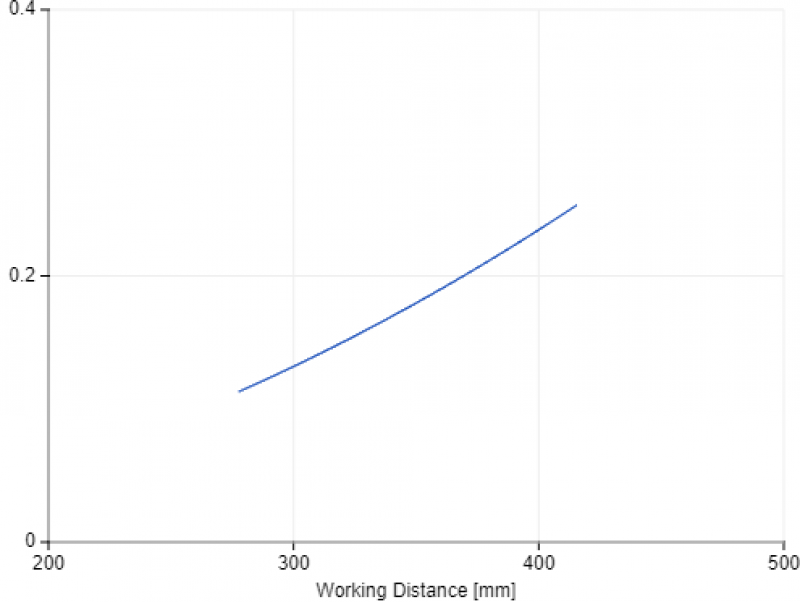

| Z-Accuracy (mm) | XY Pixel Size (mm) |
 |  |

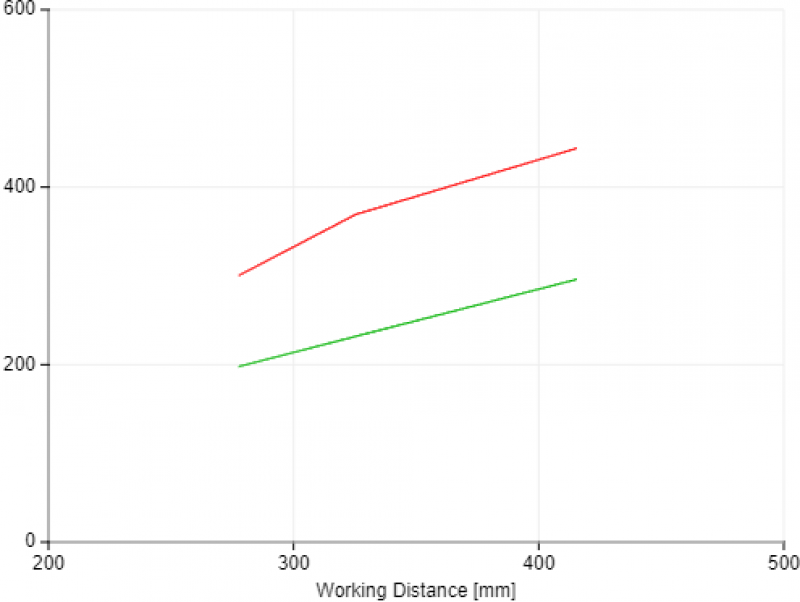

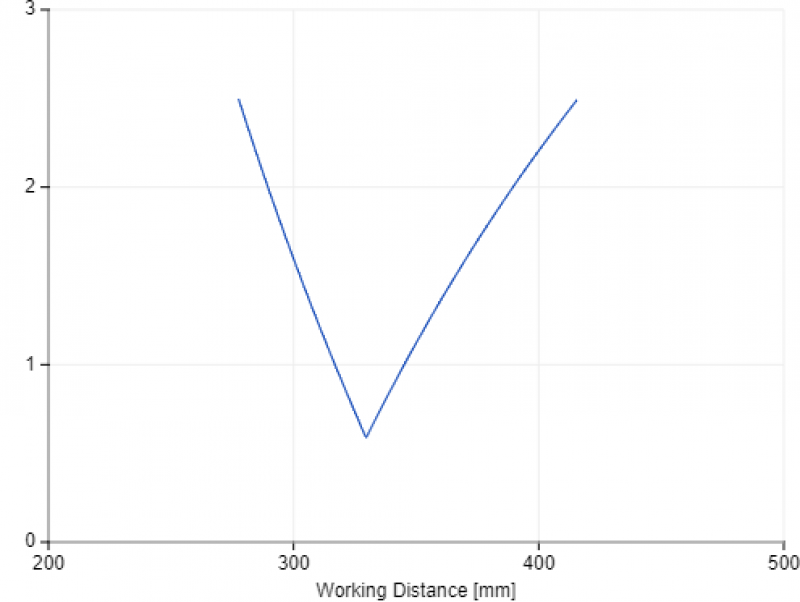

| View Field (mm) | Optics Blur (px) |
 |  |
IDS Ensenso N31-606-16 數(shù)據(jù)表
| Distance (mm) | Z-Accuracy (mm) | XY Pixel Size (mm) | View Field X (mm) | View Field Y (mm) | Optics Blur (px) |
| 280 | 0.115 | 0.164 | 303.86 | 199.53 | 2.393 |
| 300 | 0.132 | 0.176 | 332.71 | 213.78 | 1.597 |
| 400 | 0.235 | 0.234 | 430.98 | 285.05 | 2.205 |
| 410 | 0.246 | 0.240 | 439.25 | 292.17 | 2.391 |
