商品類別：iDS Camera 工業相機

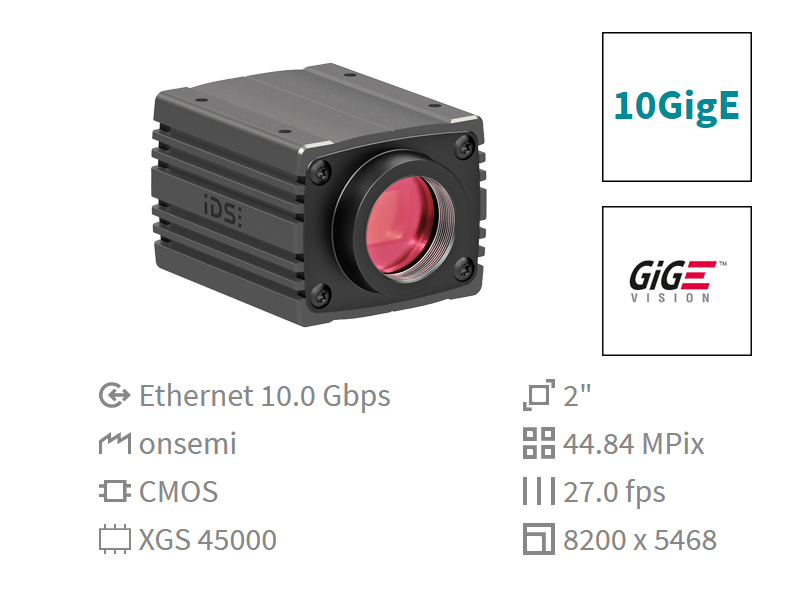

iDS Camera 10GigE Warp10系列 4484萬畫素彩色相機

2" CMOS Global Shutter Sensor

Resolution : 8200 × 5468 (44.84 Mega Pixel)

Pixel Size : 3.2um

Frame Rate : 27

Color

Sensor
Sensor Type	CMOS Color
Shutter	Global Shutter
Sensor Characteristic	Linear
Readout Mode	Progressive Scan
Pixel Class	45 MP
Resolution	8200 × 5468 Pixel (44.84 Mpix)
Aspect Ratio	3 : 2
ADC	12 bit
Color Depth (camera)	12 bit
Optical Sensor Class	Super 35mm (2")
Optical Size	26.240mm × 17.498mm
Optical Sensor Diagonal	31.54mm
Pixel Size	3.2um
Manufacturer	Onsemi
Sensor Model	NOIX1SE045KB-GTI
Gain (master/RGB)	4x / 2x
AOI Horizontal	same frame rate
AOI Vertical	increased frame rate
AOI Image Width / Step Width	256 / 2
AOI Image Height / Step Width	2 / 2
AOI Position Grid (Horizontal / Vertical)	2 / 2
Binning Horizontal	same frame rate
Binning Vertical	same frame rate
Binning Method	M / C automatic
Binning Factor	2 / 4 / 8
Subsampling Horizontal	same frame rate
Subsampling Vertical	same frame rate
Subsampling Method	M / C automatic
Subsampling Factor	2 , 4 , 8

Model
Frame rate freerun mode	27 fps
Frame rate trigger (continuous)	27 fps
Frame rate trigger (maximum)	34 fps
Long exposure (maximum)	0.037 ms ~ 2000 ms
Power consumption	12.7 W - 16.7 W
Image Memory	2032 MB

Ambient Conditions
The temperature values given below refer to the outer device temperature of the camera housing
Device Temperature During Operation	0°C ~ 55°C / 32°F ~ 131°F
Device Temperature During Storage	-20°C ~ 60°C / -4°F ~ 140°F
Humidity (relative , non-condensing)	20% ~ 80%
