LOTH133
商品類別：日本原廠
LOTH133 準直光系統對應 OTH133 線掃描鏡頭

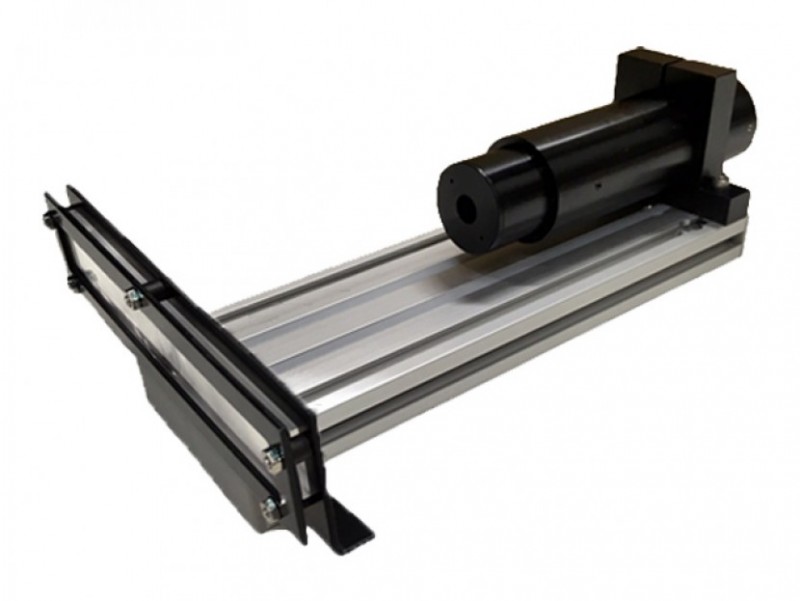

LOTH133 Fresnel Lighting System for OTH133 Line Scan Lens
| 規格 | |
| Width Of Fresnel | 100mm |
| Rod Prism Effective Width | 18.5mm |
| Rod Prism NA | 0.142 |
| Aperture Diameter (∅=1.0) | 8.5mm |
| Aperture To Lens | 136.0mm |
| Lens To Illuminated Plane | 95.0mm |
| Object L/P [lp/mm] | 100.00 |
| Image L/P [lp/mm] | 75.19 |
| Line / Cell [cell] | 1.33 |
| MTF Value (Standard Lighting System) | 17% (透射參考值) |
| MTF Value (Fresnel Lighting System) | 34% (透射參考值) |
| Corresponding Lens | OTH133 |
