LOTH100
商品類別：日本原廠
LOTH100 準(zhǔn)直光系統(tǒng)對應(yīng) OTH100 線掃描鏡頭

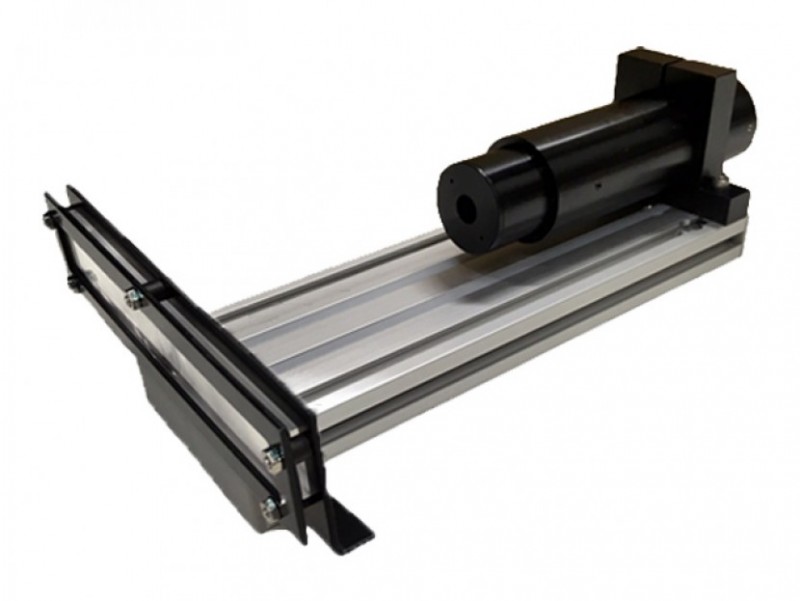

LOTH100 Fresnel Lighting System for OTH100 Line Scan Lens
| 規(guī)格 | |
| Width Of Fresnel | 130mm |
| Rod Prism Effective Width | 20.8mm |
| Rod Prism NA | 0.149 |
| Aperture Diameter (∅=1.0) | 9.0mm |
| Aperture To Lens | 158.0mm |
| Lens To Illuminated Plane | 100.0mm |
| Object L/P [lp/mm] | 50.00 |
| Image L/P [lp/mm] | 50.00 |
| Line / Cell [cell] | 2.00 |
| MTF Value (Standard Lighting System) | 44% (透射參考值) |
| MTF Value (Fresnel Lighting System) | 66% (透射參考值) |
| Corresponding Lens | OTH100 |
