LOTH050
商品類別：日本原廠

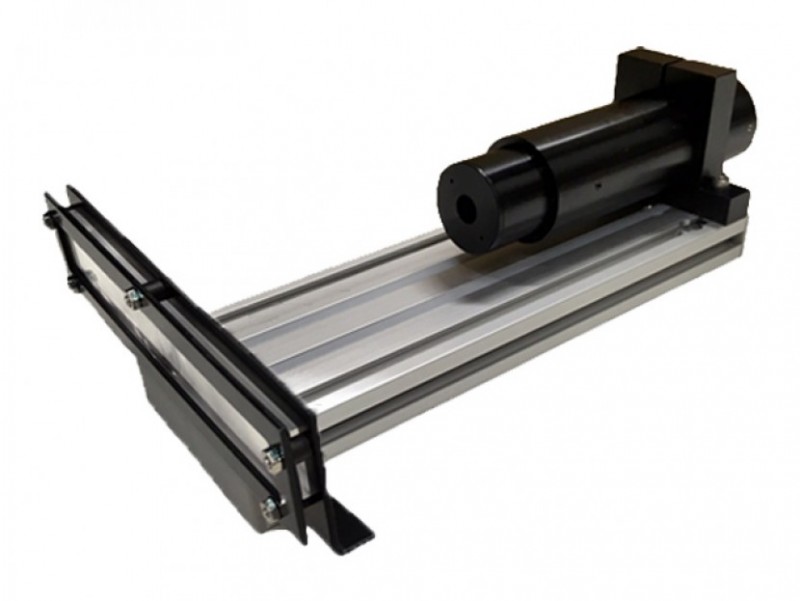

LOTH050 準直光系統(tǒng)對應 OTH050 線掃描鏡頭
LOTH050 Fresnel Lighting System for OTH050 Line Scan Lens
| 規(guī)格 | |
| Width Of Fresnel | 204mm |
| Rod Prism Effective Width | 20.6mm |
| Rod Prism NA | 0.196 |
| Aperture Diameter (∅=1.0) | 11.6mm |
| Aperture To Lens | 263.0mm |
| Lens To Illuminated Plane | 82.0mm |
| Object L/P [lp/mm] | 33.33 |
| Image L/P [lp/mm] | 66.67 |
| Line / Cell [cell] | 1.50 |
| MTF Value (Standard Lighting System) | 38% (透射參考值) |
| MTF Value (Fresnel Lighting System) | 57% (透射參考值) |
| Corresponding Lens | OTH050 |
