LFLH200
商品類別：日本原廠

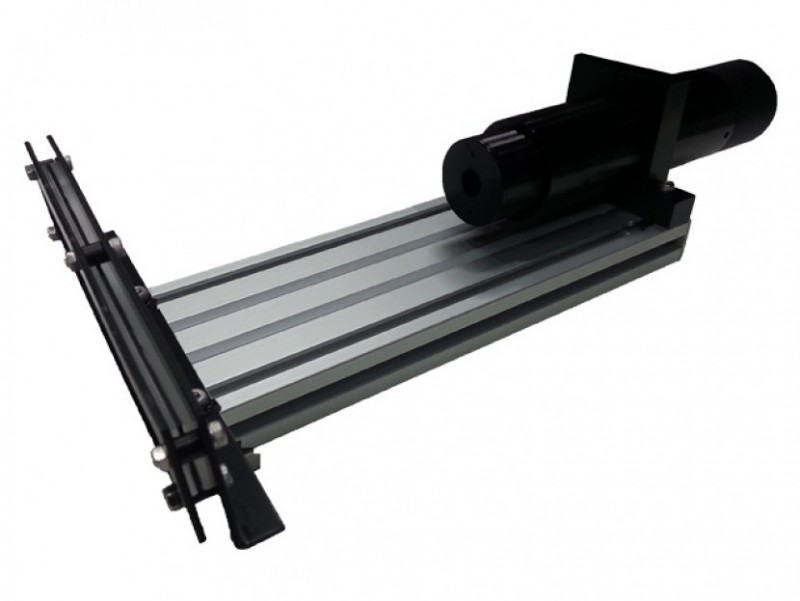

LFLH200 準直光系統(tǒng)對應 FLH200 線掃描鏡頭
LFLH200 Fresnel Lighting System for FLH200 Line Scan Lens
| 規(guī)格 | |
| Width Of Fresnel | 68mm |
| Rod Prism Effective Width | 15.4mm |
| Rod Prism NA | 0.219 |
| Aperture Diameter (∅=1.0) | 11.8mm |
| Aperture To Lens | 78.0mm |
| Lens To Illuminated Plane | 57.0mm |
| Object L/P [lp/mm] | 166.00 |
| Image L/P [lp/mm] | 83.33 |
| Line / Cell [cell] | 1.20 |
| MTF Value (Standard Lighting System) | 18% (透射參考值) |
| MTF Value (Fresnel Lighting System) | 37% (透射參考值) |
| Corresponding Lens | FLH200 |
