LFLH167
商品類別：日本原廠
LFLH167 準直光系統對應 FLH167 線掃描鏡頭

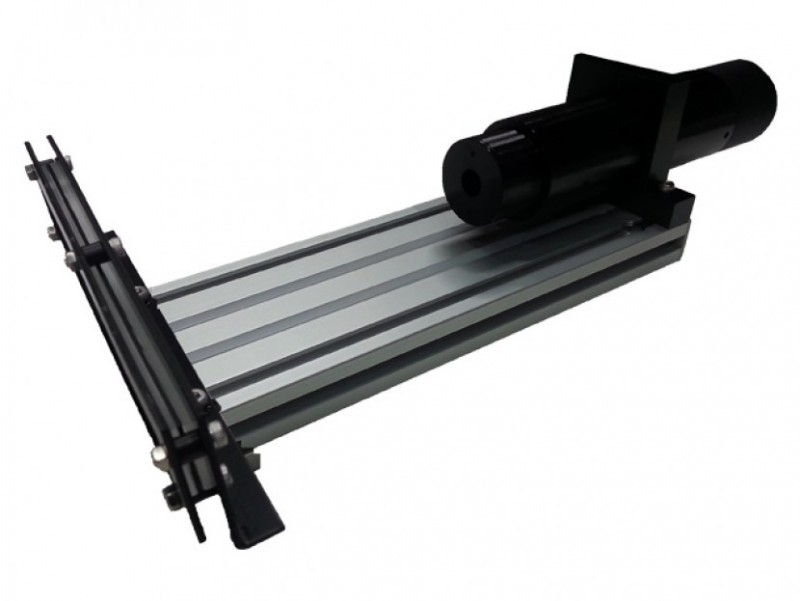

LFLH167 Fresnel Lighting System for FLH167 Line Scan Lens
| 規格 | |
| Width Of Fresnel | 90mm |
| Rod Prism Effective Width | 15.8mm |
| Rod Prism NA | 0.203 |
| Aperture Diameter (∅=1.0) | 10.8mm |
| Aperture To Lens | 93.0mm |
| Lens To Illuminated Plane | 73.0mm |
| Object L/P [lp/mm] | 100.00 |
| Image L/P [lp/mm] | 59.88 |
| Line / Cell [cell] | 1.67 |
| MTF Value (Standard Lighting System) | 37% (透射參考值) |
| MTF Value (Fresnel Lighting System) | 70% (透射參考值) |
| Corresponding Lens | FLH167 |
