LFLH133
商品類別：日本原廠
LFLH133 準(zhǔn)直光系統(tǒng)對應(yīng) FLH133 線掃描鏡頭

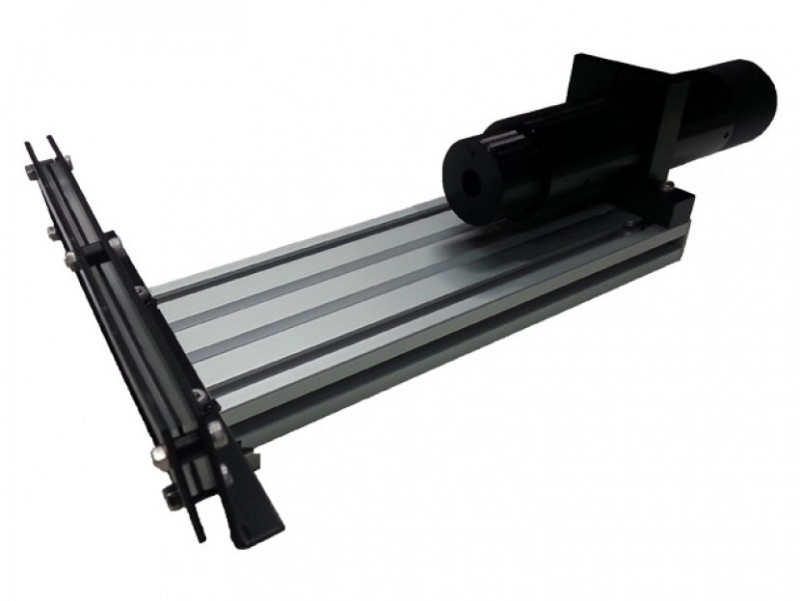

LFLH133 Fresnel Lighting System for FLH133 Line Scan Lens
| 規(guī)格 | |
| Width Of Fresnel | 114mm |
| Rod Prism Effective Width | 15.4mm |
| Rod Prism NA | 0.232 |
| Aperture Diameter (∅=1.0) | 12.8mm |
| Aperture To Lens | 112.0mm |
| Lens To Illuminated Plane | 67.0mm |
| Object L/P [lp/mm] | 100.0 |
| Image L/P [lp/mm] | 75.19 |
| Line / Cell [cell] | 1.33 |
| MTF Value (Standard Lighting System) | 30% (透射參考值) |
| MTF Value (Fresnel Lighting System) | 56% (透射參考值) |
| Corresponding Lens | FLH133 |
