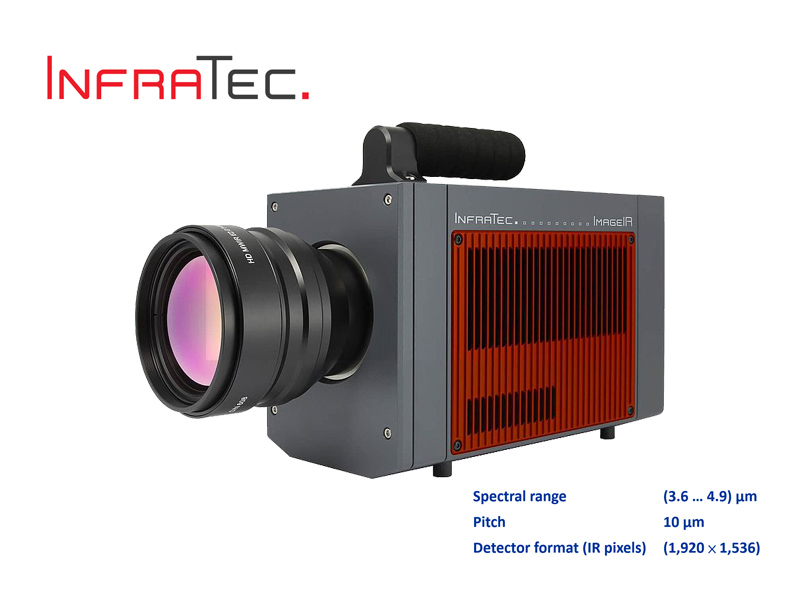

ImageIR 10300
商品類別：InfraTec 紅外線熱像儀
Infratec Highest geometric resolution ImageIR 10300
Spectral range : (3.6 … 4.9)μm
Pitch : 10μm
Detector format (IR pixels) : (1,920 × 1,536)
| Feature | Highest geometric resolution |
| Spectral range | (3.6 … 4.9)µm |
| Pitch | 10µm |
| Detector | InSb |
| Detector format (IR pixels) | (1,920 × 1,536) |
| Detector format with optomechanical MicroScan | - |
| Temperature measuring range | (-40 … 1,200)°C up to 3,000°C* |
| Measurement accuracy | ±1°C or ±1% |
| Temperature resolution @ 30°C | Better than 0.035K / 0.022K in highspeed mode |
| Max. frame rate (full / half / quarter / sub frame)* | Up to 113 / 216 / 396 / 1,915 Hz |
| Max. frame rate with high-speed mode | Up to 400 / 692 / 1,088/ 2,493 Hz |
| Dynamic range | 13 bit |
| Integration time | (1 … 20,000)µs |
| Filter wheel* | Up to 6 positions |
| Aperture wheel* | Up to 6 positions |
| Interfaces | 10 GigE , HDMI* |
| Trigger | 4 IN / 2 OUT , TTL |
| Analog signals* , IRIG-B* | 2 IN / 2 OUT , yes |
| Dimensions (mm)* | 241 × 123 × 160 |
| Weight (without lens) | 4.7kg |
