商品類別：iDS Camera 工業相機

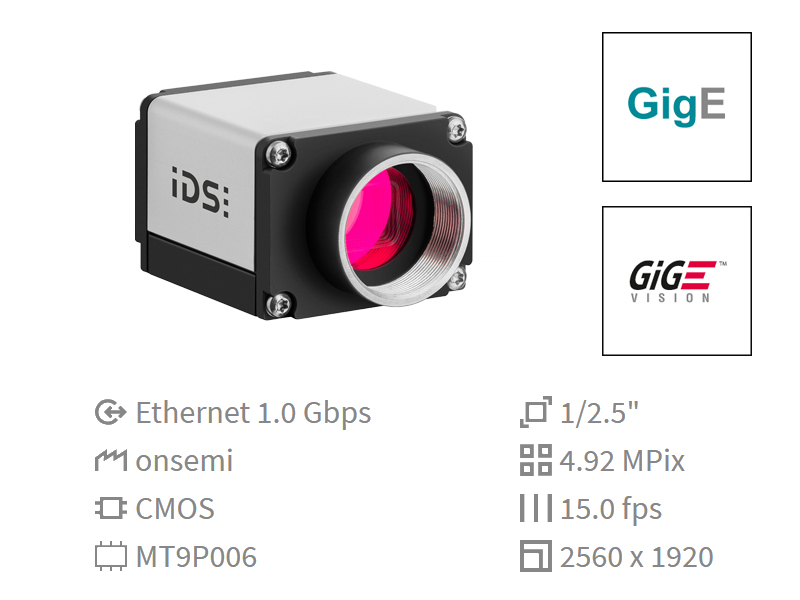

iDS Camera Ethernet SE系列 492萬畫素彩色相機

1/2.5" CMOS Rolling Shutter Sensor

Resolution : 2560 × 1920 (4.92 Mega Pixel)

Pixel Size : 2.2um

Frame Rate : 15

Color

Sensor
Sensor Type	CMOS Color
Shutter	Rolling Shutter
Sensor Characteristic	Linear
Readout Mode	Progressive Scan
Pixel Class	5 MP
Resolution	2560 × 1920 Pixel (4.92 Mpix)
Aspect Ratio	4 : 3
ADC	12 bit
Color Depth (camera)	12 bit
Optical Sensor Class	1/2.5"
Optical Size	5.632mm × 4.224mm
Optical Sensor Diagonal	7.04mm (1/2.27")
Pixel Size	2.2um
Manufacturer	Onsemi
Sensor Model	MT9P006STC
Gain (master/RGB)	12.2x / 5.8x
AOI Horizontal	increased frame rate
AOI Vertical	increased frame rate
AOI Image Width / Step Width	16 / 4
AOI Image Height / Step Width	2 / 2
AOI Position Grid (Horizontal / Vertical)	4 / 2
Binning Horizontal	increased frame rate
Binning Vertical	increased frame rate
Binning Method	-
Binning Factor	2 / 4 / 8
Subsampling Horizontal	same frame rate
Subsampling Vertical	same frame rate
Subsampling Method	M / C automatic
Subsampling Factor	2 , 4 , 8

Model
Frame Rate Freerun Mode (in 8-bit mode)	15 fps
Frame Rate Trigger (continuous)	15 fps
Frame Rate Trigger (maximum)	15 fps
Exposure Time (minimum ~ maximum)	0.030ms ~ 131ms
Power Consumption	1.6W ~ 2.6W
Image Memory	128 MB

Ambient Conditions
The temperature values given below refer to the outer device temperature of the camera housing
Device Temperature During Operation	0°C ~ 55°C / 32°F ~ 131°F
Device Temperature During Storage	-20°C ~ 60°C / -4°F ~ 140°F
Humidity (relative , non-condensing)	20% ~ 80%
