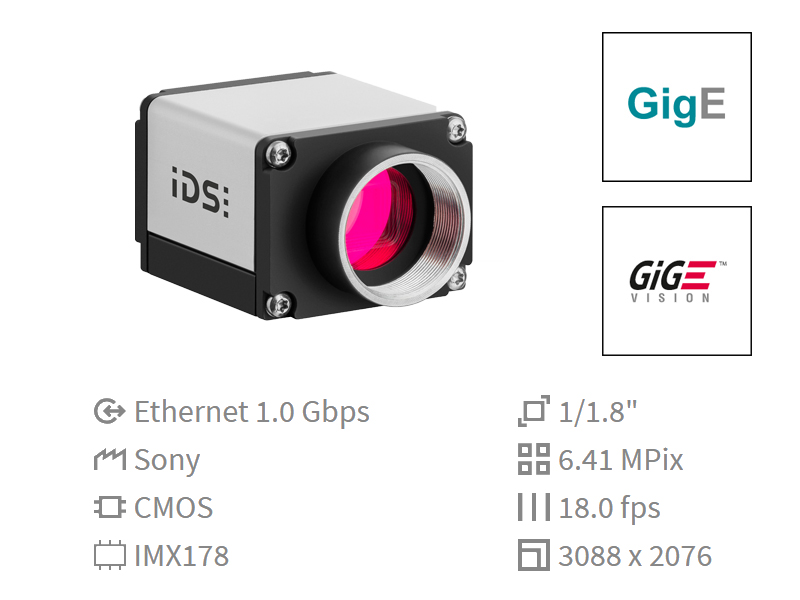

GV-5880SE-M-GL Rev.4.2
商品類別：iDS Camera 工業(yè)相機
iDS Camera Ethernet SE系列 641萬畫素 黑白相機
1/1.8" CMOS Rolling Shutter Sensor
Resolution : 3088 × 2076 (6.41 Mega Pixel)
Pixel Size : 2.4um
Frame Rate : 18
Mono
| Sensor | |
| Sensor Type | CMOS Mono |
| Shutter | Rolling Shutter / Global Start Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 6 MP |
| Resolution | 3088 × 2076 Pixel (6.41 Mpix) |
| Aspect Ratio | 3 : 2 |
| ADC | 12 bit |
| Color Depth (camera) | 12 bit |
| Optical Sensor Class | 1/1.8" |
| Optical Size | 7.411mm × 4.982mm |
| Optical Sensor Diagonal | 8.93mm (1/1.79") |
| Pixel Size | 2.4um |
| Manufacturer | Sony |
| Sensor Model | IMX178LLJ-C |
| Gain (master/RGB) | 14.5x / 5x |
| AOI Horizontal | same frame rate |
| AOI Vertical | increased frame rate |
| AOI Image Width / Step Width | 88 / 8 |
| AOI Image Height / Step Width | 1 / 1 |
| AOI Position Grid (Horizontal / Vertical) | 8 / 1 |
| Binning Horizontal | increased frame rate |
| Binning Vertical | increased frame rate |
| Binning Method | M / C automatic |
| Binning Factor | 2 / 4 / 8 |
| Subsampling Horizontal | same frame rate |
| Subsampling Vertical | same frame rate |
| Subsampling Method | M / C automatic |
| Subsampling Factor | 2 , 4 , 8 |
| Model | |
| Frame Rate Freerun Mode (in 8-bit mode) | 18 fps |
| Frame Rate Trigger (continuous) | 18 fps |
| Frame Rate Trigger (maximum) | 18 fps |
| Exposure Time (minimum ~ maximum) | 0.031ms ~ 2000ms |
| Long Exposure (maximum) | 60000ms |
| Power Consumption | 1.8W ~ 2.7W |
| Image Memory | 128 MB |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 20% ~ 80% |
| Connectors | |
| Interface Connector | GigE RJ45 , Screwable |
| I/O Connector | 8 Pin Hirose Connector |
| Power Supply | 12V ~ 24V or PoE |
| Design | |
| Lens Mount | C-Mount |
| IP Code | IP30 |
| Dimensions H/W/L | 34.0mm × 44.0mm × 47.0mm |
| Mass | 106g |
