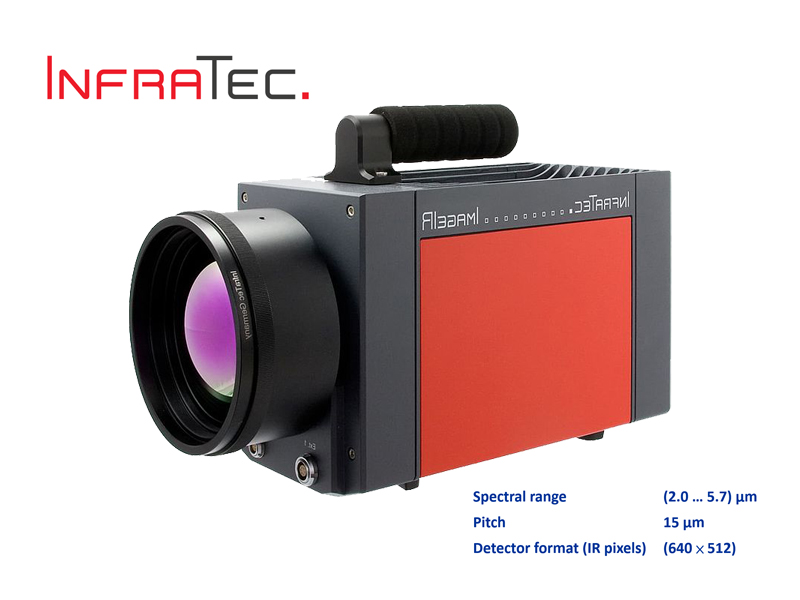

ImageIR 8300
商品類別：InfraTec 紅外線熱像儀
Infratec Universal model for continuous operation applications ImageIR 8300
Spectral range : (2.0 … 5.7)μm
Pitch : 15μm
Detector format (IR pixels) : (640 × 512)
| Feature | Universal model for continuous operation applications |
| Spectral range | (2.0 … 5.7)µm |
| Pitch | 15µm |
| Detector | MCT or InSb |
| Detector format (IR pixels) | (640 × 512) |
| Detector format with optomechanical MicroScan | - |
| Temperature measuring range | (-40 … 1,500)°C , up to 3,000°C* |
| Measurement accuracy | ±1°C or ±1% |
| Temperature resolution @ 30°C | MCT : Better than 0.02K InSb : Better than 0.025K |
| Max. frame rate (full / half / quarter / sub frame)* | MCT : Up to 151 / 540 / 1,520 / 2,807 Hz InSb : Up to 205 / 570 / 1,020 / 5,000 Hz |
| Max. frame rate with high-speed mode | - |
| Dynamic range | Up to 16 bit* |
| Integration time | (0.6 … 20,000)µs |
| Filter wheel* | Up to 6 positions |
| Aperture wheel* | Up to 5 positions |
| Interfaces | GigE , CAMLink* , HDMI* |
| Trigger | 4 IN / 2 OUT , TTL |
| Analog signals*, IRIG-B* | 2 IN / 2 OUT , yes |
| Dimensions (mm)* | MCT : 241 × 120 × 160 InSb : 235 × 120 × 160 |
| Weight (without lens) | 3.3kg |
