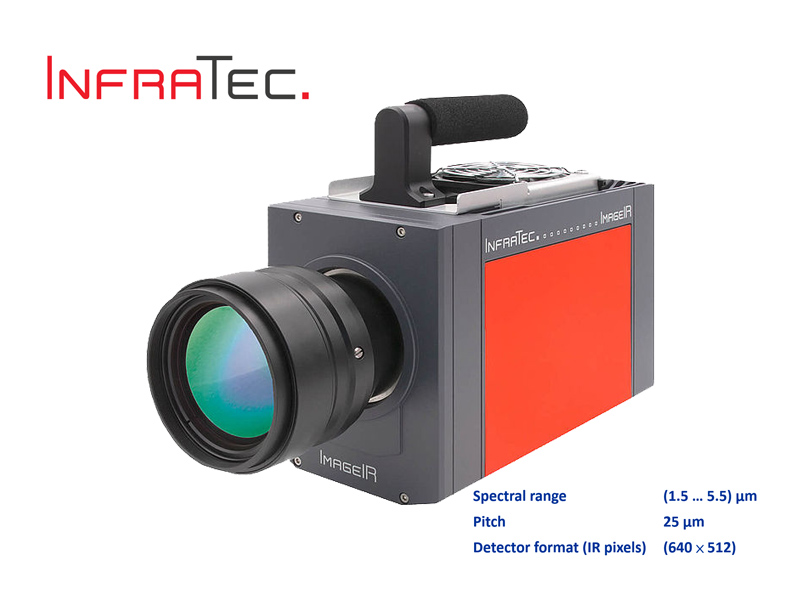

ImageIR 8300 hs
商品類別：InfraTec 紅外線熱像儀
Infratec High-speed in VGA format ImageIR 8300 hs
Spectral range : (1.5 … 5.5)μm
Pitch : 25μm
Detector format (IR pixels) : (640 × 512)
| Feature | High-speed in VGA format |
| Spectral range | (1.5 … 5.5)µm |
| Pitch | 25µm |
| Detector | T2SLS or InSb |
| Detector format (IR pixels) | (640 × 512) |
| Detector format with optomechanical MicroScan | - |
| Temperature measuring range | (-40 … 1,700)°C , up to 3,000°C* |
| Measurement accuracy | ±1°C or ±1% |
| Temperature resolution @ 30°C | Better than 0.02K |
| Max. frame rate (full / half / quarter / sub frame)* | Up to 1,004 / 1,950 / 3,750 / 30,000 Hz |
| Max. frame rate with high-speed mode | - |
| Dynamic range | 14 bit |
| Integration time | (0.5 … 20,000)μs |
| Filter wheel* | Up to 6 positions |
| Aperture wheel* | Up to 6 positions |
| Interfaces | 10 GigE , HDMI* |
| Trigger | 4 IN / 2 OUT , TTL |
| Analog signals* , IRIG-B* | 2 IN / 2 OUT , yes |
| Dimensions (mm)* | 235 × 120 × 160 |
| Weight (without lens) | 4.0kg |
