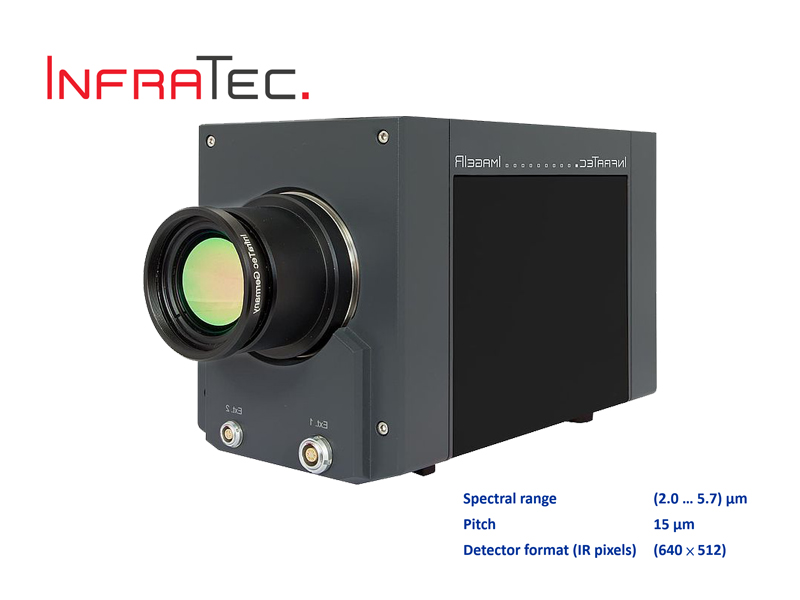

ImageIR 7300
商品類別：InfraTec 紅外線熱像儀
Infratec Entry-level model into the VGA segment ImageIR 7300
Spectral range : (2.0 … 5.7)μm
Pitch : 15μm
Detector format (IR pixels) : (640 × 512)
| Feature | Entry-level model into the VGA segment |
| Spectral range | (2.0 … 5.7)µm |
| Pitch | 15µm |
| Detector | MCT or InSb |
| Detector format (IR pixels) | (640 × 512) |
| Detector format with optomechanical MicroScan | - |
| Temperature measuring range | (-40 … 300)°C |
| Measurement accuracy | ±2°C or ±2% |
| Temperature resolution @ 30°C | MCT : Better than 0.02K InSb : Better than 0.025K |
| Max. frame rate (full / half / quarter / sub frame)* | MCT : Up to 75 / 300 / 1,200 Hz InSb : Up to 100 / 326 / 863 Hz |
| Max. frame rate with high-speed mode | - |
| Dynamic range | 14 bit |
| Integration time | (1 … 20,000)µs |
| Filter wheel* | Up to 6 positions |
| Aperture wheel* | Up to 5 positions |
| Interfaces | GigE , HDMI* |
| Trigger | 2 IN / 2 OUT , TTL |
| Analog signals* , IRIG-B* | 2 IN / 2 OUT , no |
| Dimensions (mm)* | MCT : 241 × 120 × 160 InSb : 235 × 120 × 160 |
| Weight (without lens) | 3.3kg |
