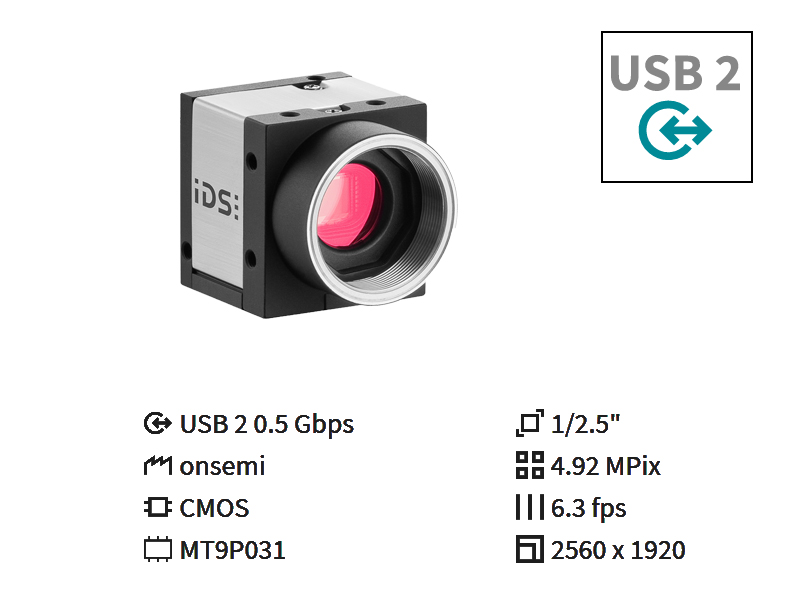

UI-1480SE-M-GL
商品類別：iDS Camera 工業(yè)相機(jī)
iDS Camera USB 2.0 SE系列 492萬(wàn)畫素 黑白相機(jī)
1/2.5" CMOS Rolling Shutter Sensor
Resolution : 2560 × 1920 (4.92 Mega Pixel)
Pixel Size : 2.2um
Frame Rate : 6.3
Mono
| Sensor | |
| Sensor Type | CMOS Mono |
| Shutter | Rolling Shutter / Global Start Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 5 MP |
| Resolution | 2560 × 1920 Pixel (4.92 Mpix) |
| Aspect Ratio | 4 : 3 |
| ADC | 12 bit |
| Color Depth (camera) | 8 bit |
| Optical Sensor Class | 1/2.5" |
| Optical Size | 5.632mm × 4.224mm |
| Optical Sensor Diagonal | 7.04mm (1/2.27") |
| Pixel Size | 2.2um |
| Manufacturer | Onsemi |
| Sensor Model | MT9P031STM |
| Gain (master/RGB) | 30x / - |
| AOI Horizontal | increased frame rate |
| AOI Vertical | increased frame rate |
| AOI Image Width / Step Width | 32 / 4 |
| AOI Image Height / Step Width | 4 / 2 |
| AOI Position Grid (Horizontal / Vertical) | 4 / 2 |
| Binning Horizontal | increased frame rate |
| Binning Vertical | increased frame rate |
| Binning Method | Color |
| Binning Factor | 2 / 3 / 4 / 6 |
| Subsampling Horizontal | increased frame rate |
| Subsampling Vertical | increased frame rate |
| Subsampling Method | Color |
| Subsampling Factor | 2 , 3 , 4 , 5 , 6 |
| Model | |
| Pixel Clock Range | 5 MHz ~ 43 MHz |
| Frame Rate Freerun Mode | 6.3 fps |
| Frame Rate Trigger (maximum) | 6.4 fps |
| Exposure Time (minimum ~ maximum) | 0.075ms ~ 2745ms |
| Power Consumption | 0.5W ~ 0.9W |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 20% ~ 80% |
| Connectors | |
| Interface Connector | USB 2.0 mini-B , Screwable |
| I/O Connector | 9 Pin micro D-Sub socket |
| Power Supply | USB Cable |
| Design | |
| Lens Mount | C-Mount |
| IP Code | IP30 |
| Dimensions H/W/L | 34.0mm × 32.0mm × 41.3mm |
| Mass | 65g |
