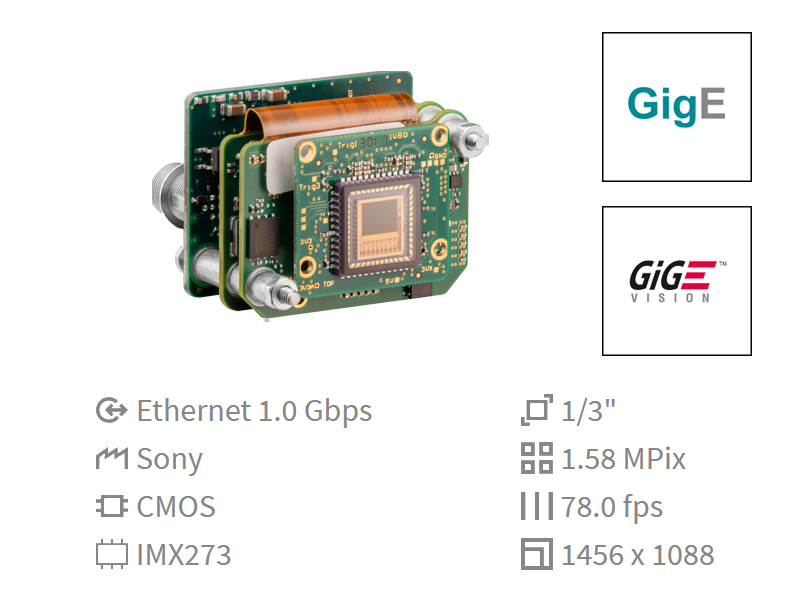

GV-5042SE-C Rev.4.2
商品類別:iDS Camera 工業相機
iDS Camera Ethernet SE系列 158萬畫素 彩色相機
1/3" CMOS Global Shutter Sensor
Resolution : 1456 × 1088 (1.58 Mega Pixel)
Pixel Size : 3.45um
Frame Rate : 78
Color
Sensor | |
Sensor Type | CMOS Color |
Shutter | Global Shutter |
Sensor Characteristic | Linear |
Readout Mode | Progressive Scan |
Pixel Class | 1.6 MP |
Resolution | 1456 × 1088 Pixel (1.58 Mpix) |
Aspect Ratio | 4 : 3 |
ADC | 12 bit |
Color Depth (camera) | 12 bit |
Optical Sensor Class | 1/3" |
Optical Size | 5.023mm × 3.754mm |
Optical Sensor Diagonal | 6.27mm (1/2.55") |
Pixel Size | 3.45um |
Manufacturer | Sony |
Sensor Model | IMX273LQR-C |
Gain (master/RGB) | 24x / 4x |
AOI Horizontal | same frame rate |
AOI Vertical | increased frame rate |
AOI Image Width / Step Width | 264 / 8 |
AOI Image Height / Step Width | 2 / 2 |
AOI Position Grid (Horizontal / Vertical) | 8 / 2 |
Binning Horizontal | same frame rate |
Binning Vertical | same frame rate |
Binning Method | M / C automatic |
Binning Factor | 2 / 4 / 8 |
Subsampling Horizontal | same frame rate |
Subsampling Vertical | same frame rate |
Subsampling Method | M / C automatic |
Subsampling Factor | 2 , 4 , 8 |
Model | |
Frame Rate Freerun Mode (in 8-big mode) | 78 fps |
Frame Rate Trigger (continuous) | 78 fps |
Frame Rate Trigger (maximum) | 81 fps |
Exposure Time (minimum ~ maximum) | 0.025ms ~ 2000ms |
Long Exposure (maximum) | 90000ms |
Power Consumption | 1.1W ~ 3.5W |
Image Memory | 128 MB |
Ambient Conditions | |
The temperature values given below refer to the outer device temperature of the camera housing | |
Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
Humidity (relative , non-condensing) | 20% ~ 80% |
Connectors | |
Interface Connector | GigE RJ45 |
I/O Connector | 8 Pin Hirose Connector |
Power Supply | 12V ~ 24V or PoE |
Design | |
Lens Mount | - |
IP Code | - |
Dimensions H/W/L | 31.5mm × 40.0mm × 30.0mm |
Mass | 36g |
