N46-602-16
商品類別：iDS Ensenso

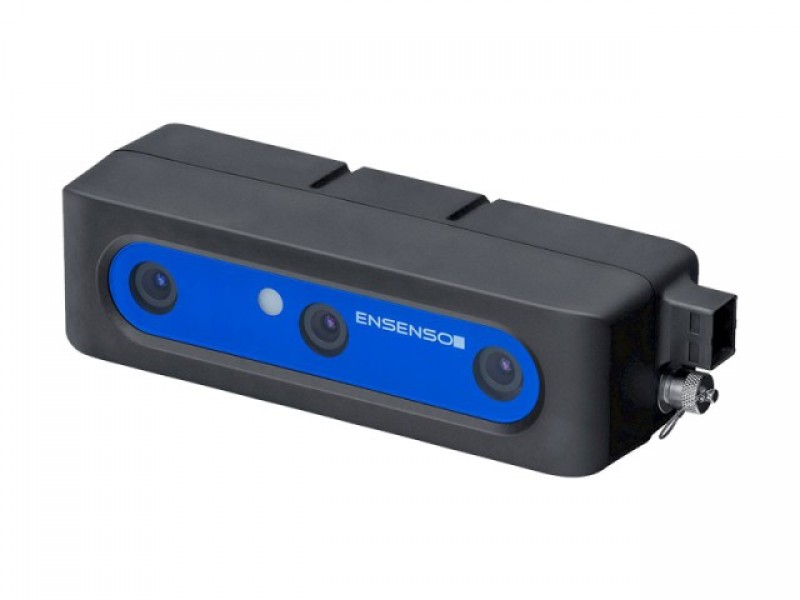

IDS Ensenso N46系列 3D 立體視覺相機
Lenses - Focal Length : 6mm
Lenses - Relative Aperture : 1.6
Vergence Angle : 3.0°
Focus Distance : 950mm
Operating Distance : 550mm ~ 3000mm
| Optics N46-602-16 | |
| Lenses - Focal Length | 6mm |
| Lenses - Relative Aperture | 1.6 |
| Vergence Angle | 3.0° |
| Baseline (Pupillary Distance) | 100mm |
Focus Distance | 950mm |
Operating Distance | 550 ~ 3000 (mm) |
| Calibration Plate - Dimensions | 390 × 390 × 3 (mm) |
| Calibration Plate - Grid Dots / Grid Spacing | 15 × 15 / 48mm |
| Specifications N46 Series | |
| Dimensions | 192.5 × 52 × 60 (mm) |
| Weight | 550g |
| Resolution | 1936 × 1216 (2.3 MP) |
| Frames per Second | 10 (2.3 MP) , 30 (2 × Binning) |
| Interface | Gigabit Ethernet |
| Inputs | 1 × Trigger |
| Outputs | 1 × Flash / GPIO |
| Input Voltage | 12V ~ 24V DC / PoE |
| Housing - Projector | Plastic , IP65 / 67 |
| Temperature - Operation | 0°C ~ 40°C |
| Temperature - Storage | 0°C ~ 50°C |
| Vibration Resistance | 30 ~ 500 Hz 10g (sine) |
| Shock Resistance | 80g , 1.9ms / 25g , 6ms (half sine) |
| Software | Ensenso SDK |
IDS Ensenso N46-602-16 數據圖

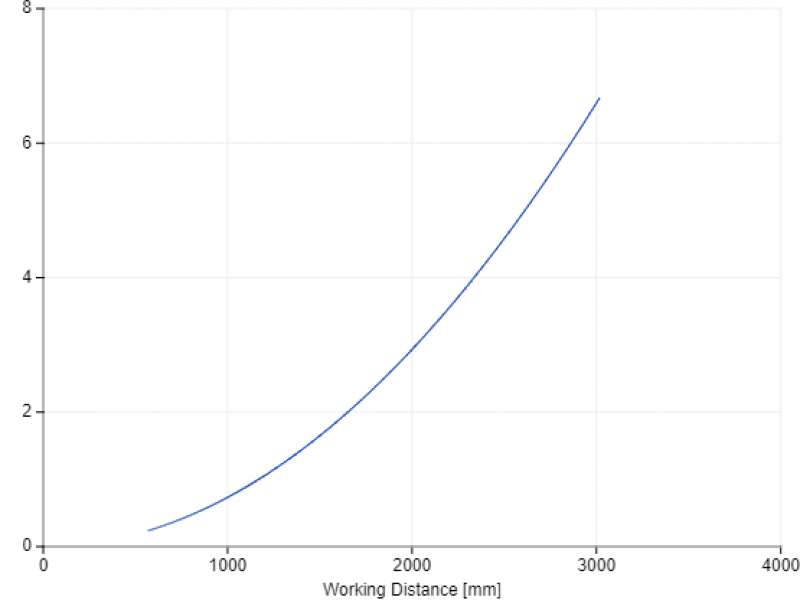

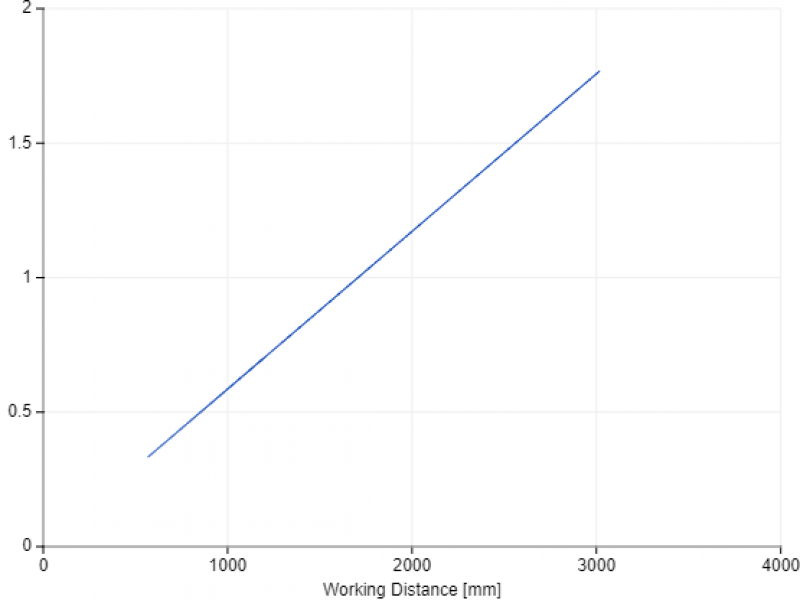

| Z-Accuracy (mm) | XY Pixel Size (mm) |
 |  |

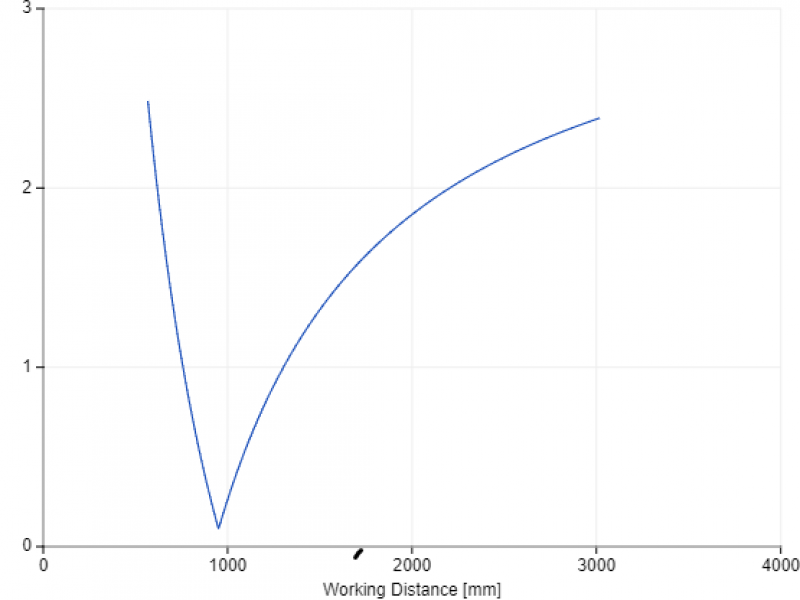

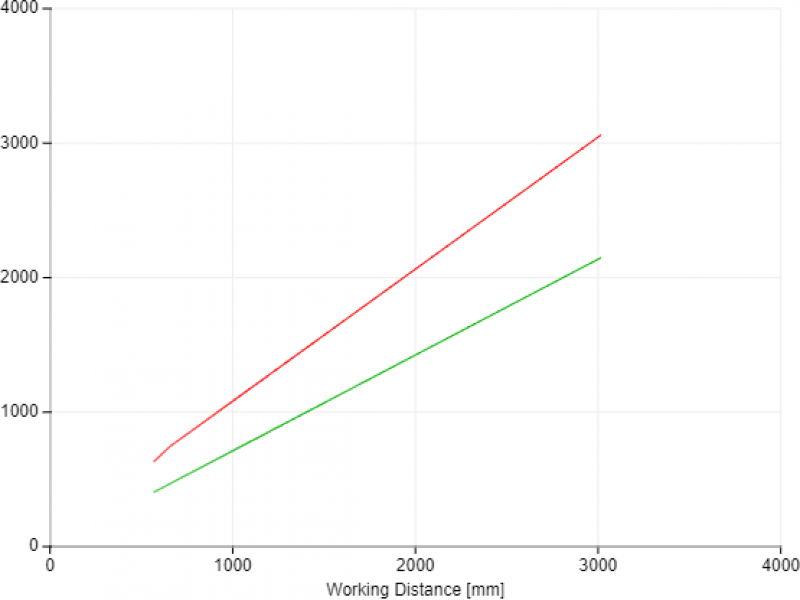

| View Field (mm) | Optics Blur (px) |
 |  |
IDS Ensenso N46-602-16 數據表
| Distance (mm) | Z-Accuracy (mm) | XY Pixel Size (mm) | View Field X (mm) | View Field Y (mm) | Optics Blur (px) |
| 600 | 0.264 | 0.352 | 672.21 | 427.33 | 2.168 |
| 700 | 0.359 | 0.410 | 787.09 | 498.56 | 1.369 |
| 800 | 0.469 | 0.469 | 885.24 | 569.78 | 0.767 |
| 900 | 0.594 | 0.527 | 983.40 | 641.00 | 0.298 |
| 1000 | 0.733 | 0.586 | 1081.55 | 712.22 | 0.262 |
| 1100 | 0.887 | 0.644 | 1179.71 | 783.45 | 0.551 |
| 1200 | 1.055 | 0.703 | 1277.86 | 854.67 | 0.791 |
| 1300 | 1.238 | 0.762 | 1376.02 | 925.89 | 0.995 |
| 1400 | 1.436 | 0.820 | 1474.17 | 997.11 | 1.170 |
| 1500 | 1.649 | 0.879 | 1572.33 | 1068.34 | 1.321 |
| 1600 | 1.876 | 0.937 | 1670.49 | 1139.56 | 1.454 |
| 1700 | 2.118 | 0.996 | 1768.64 | 1210.78 | 1.571 |
| 1800 | 2.374 | 1.055 | 1866.80 | 1282.00 | 1.675 |
| 1900 | 2.645 | 1.113 | 1964.95 | 1353.22 | 1.768 |
| 2000 | 2.931 | 1.172 | 2063.11 | 1424.45 | 1.852 |
| 2100 | 3.231 | 1.230 | 2161.26 | 1495.67 | 1.928 |
| 2200 | 3.546 | 1.289 | 2259.42 | 1566.89 | 1.997 |
| 2300 | 3.876 | 1.347 | 2357.57 | 1638.11 | 2.060 |
| 2400 | 4.221 | 1.406 | 2455.73 | 1709.34 | 2.118 |
| 2500 | 4.580 | 1.465 | 2553.88 | 1780.56 | 2.171 |
| 2600 | 4.953 | 1.523 | 2652.04 | 1851.78 | 2.220 |
| 2700 | 5.342 | 1.582 | 2750.19 | 1923.00 | 2.265 |
| 2800 | 5.745 | 1.640 | 2848.35 | 1994.23 | 2.308 |
| 2900 | 6.162 | 1.699 | 2946.50 | 2065.45 | 2.347 |
| 3000 | 6.595 | 1.758 | 3044.66 | 2136.67 | 2.384 |
