N46-802-16
商品類別：iDS Ensenso

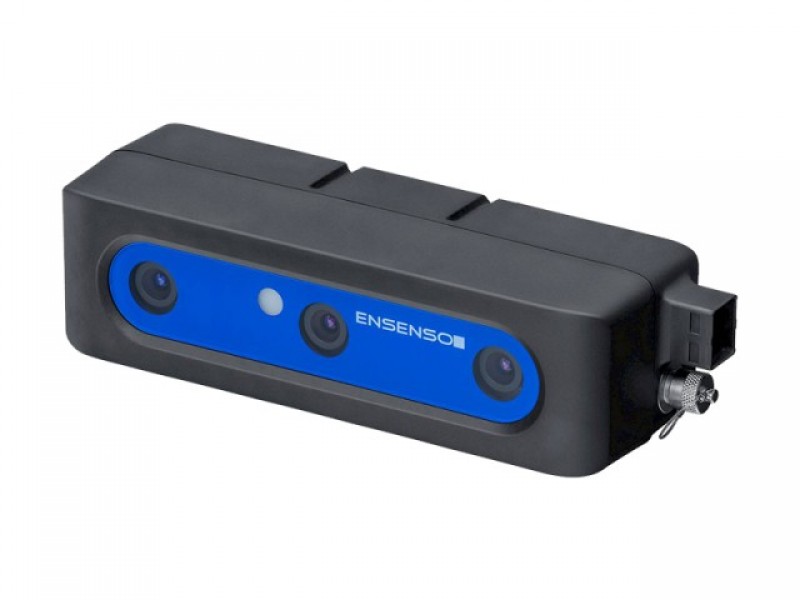

IDS Ensenso N46系列 3D 立體視覺相機
Lenses - Focal Length : 8mm
Lenses - Relative Aperture : 1.6
Vergence Angle : 3.0°
Focus Distance : 1200mm
Operating Distance : 800mm ~ 2400mm
| Optics N46-802-16 | |
| Lenses - Focal Length | 8mm |
| Lenses - Relative Aperture | 1.6 |
| Vergence Angle | 3.0° |
| Baseline (Pupillary Distance) | 100mm |
Focus Distance | 1200mm |
Operating Distance | 800 ~ 2400 (mm) |
| Calibration Plate - Dimensions | 390 × 390 × 3 (mm) |
| Calibration Plate - Grid Dots / Grid Spacing | 15 × 15 / 48mm |
| Specifications N46 Series | |
| Dimensions | 192.5 × 52 × 60 (mm) |
| Weight | 550g |
| Resolution | 1936 × 1216 (2.3 MP) |
| Frames per Second | 10 (2.3 MP) , 30 (2 × Binning) |
| Interface | Gigabit Ethernet |
| Inputs | 1 × Trigger |
| Outputs | 1 × Flash / GPIO |
| Input Voltage | 12V ~ 24V DC / PoE |
| Housing - Projector | Plastic , IP65 / 67 |
| Temperature - Operation | 0°C ~ 40°C |
| Temperature - Storage | 0°C ~ 50°C |
| Vibration Resistance | 30 ~ 500 Hz 10g (sine) |
| Shock Resistance | 80g , 1.9ms / 25g , 6ms (half sine) |
| Software | Ensenso SDK |
IDS Ensenso N46-802-16 數據圖

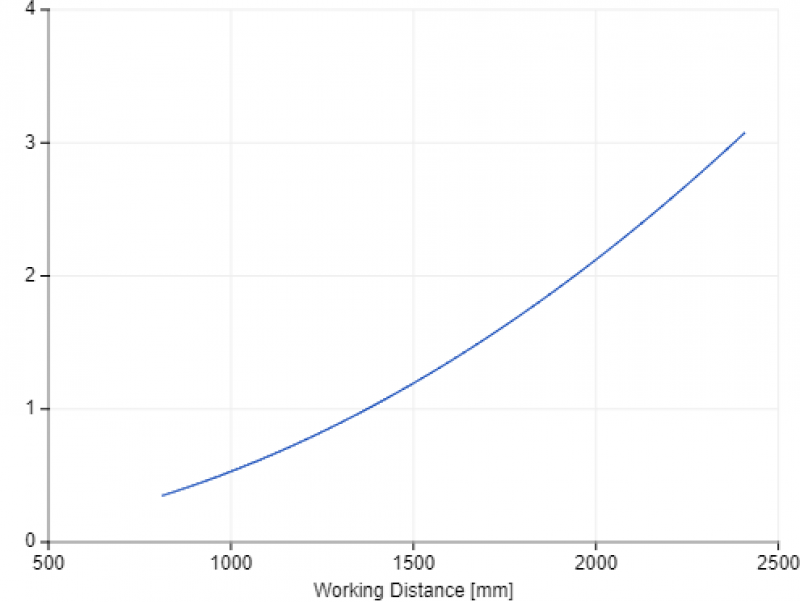

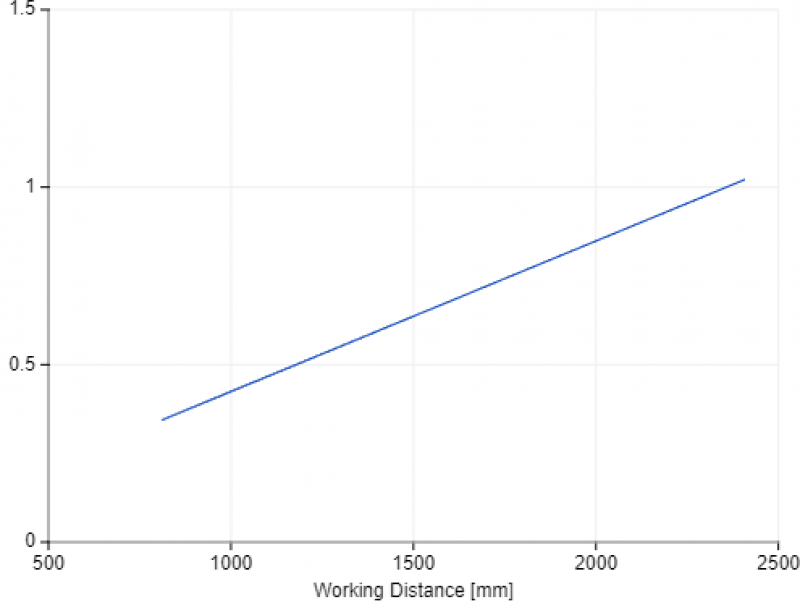

| Z-Accuracy (mm) | XY Pixel Size (mm) |
 |  |

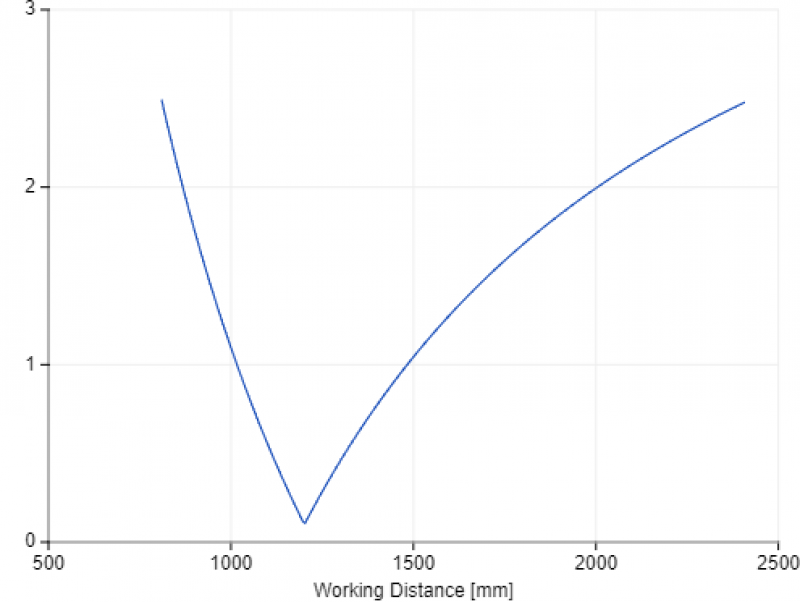

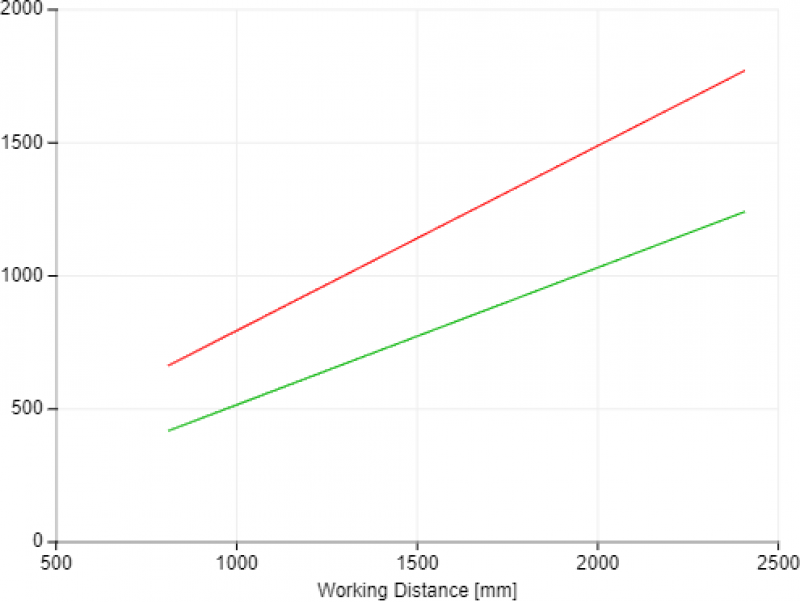

| View Field (mm) | Optics Blur (px) |
 |  |
IDS Ensenso N46-802-16 數據表
| Distance (mm) | Z-Accuracy (mm) | XY Pixel Size (mm) | View Field X (mm) | View Field Y (mm) | Optics Blur (px) |
| 850 | 0.383 | 0.361 | 690.23 | 438.31 | 2.146 |
| 900 | 0.430 | 0.382 | 724.95 | 464.09 | 1.757 |
| 1000 | 0.531 | 0.424 | 794.39 | 515.66 | 1.096 |
| 1100 | 0.642 | 0.467 | 863.83 | 567.23 | 0.555 |
| 1200 | 0.764 | 0.509 | 933.27 | 618.79 | 0.104 |
| 1300 | 0.897 | 0.551 | 1002.71 | 670.36 | 0.459 |
| 1400 | 1.040 | 0.594 | 1072.15 | 721.92 | 0.772 |
| 1500 | 1.194 | 0.636 | 1141.59 | 773.49 | 1.043 |
| 1600 | 1.358 | 0.679 | 1211.03 | 825.06 | 1.281 |
| 1700 | 1.533 | 0.721 | 1280.47 | 876.62 | 1.491 |
| 1800 | 1.719 | 0.764 | 1349.91 | 928.19 | 1.677 |
| 1900 | 1.915 | 0.806 | 1419.35 | 979.75 | 1.844 |
| 2000 | 2.122 | 0.848 | 1488.79 | 1031.32 | 1.994 |
| 2100 | 2.340 | 0.891 | 1558.23 | 1082.89 | 2.130 |
| 2200 | 2.568 | 0.933 | 1627.67 | 1134.45 | 2.254 |
| 2300 | 2.806 | 0.976 | 1697.11 | 1186.02 | 2.367 |
| 2400 | 3.056 | 1.018 | 1766.54 | 1237.58 | 2.470 |
