GV-5260FA-C-HQ Rev.1.2

商品類別:iDS Camera 工業相機

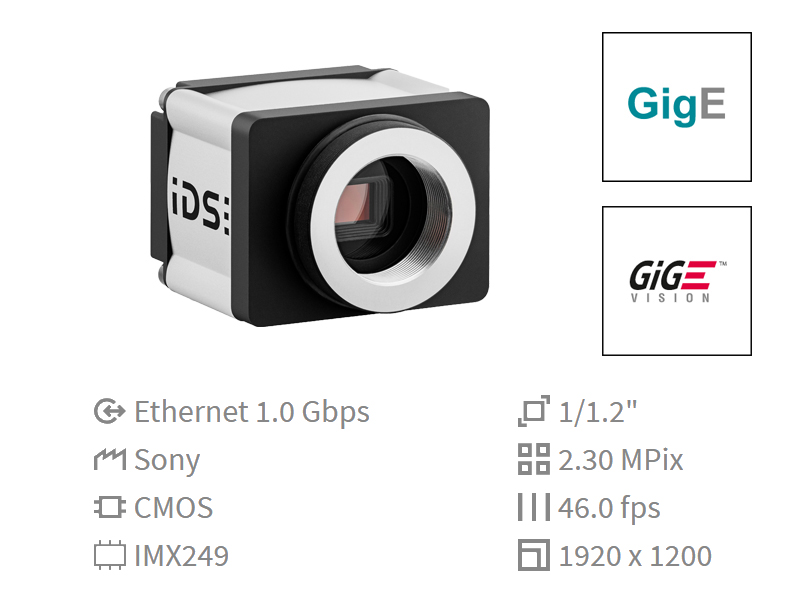

iDS Camera GigE FA系列 230萬畫素 彩色相機

1/1.2" CMOS Global Shutter Sensor

Resolution : 1920 × 1200 (2.30 Mega Pixel)

Pixel Size : 5.86um

Frame Rate : 46

Color

Sensor
Sensor Type
CMOS Color
ShutterGlobal Shutter
Sensor Characteristic
Linear
Readout Mode
Progressive Scan
Pixel Class
2 MP
Resolution1920 × 1200 Pixel (2.30 Mpix)
Aspect Ratio
16:10
ADC12 bit
Color Depth (camera)
12 bit
Optical Sensor Class
1/1.2"
Optical Size11.251mm × 7.032mm
Optical Sensor Diagonal13.27mm (1/1.21")
Pixel Size5.86um
ManufacturerSony
Sensor ModelIMX249LQJ-C
Gain (master/RGB)24x / 4x
AOI Horizontalsame frame rate
AOI Verticalincreased frame rate
AOI Image Width / Step Width96 / 8
AOI Image Height / Step Width2 / 2
AOI Position Grid (Horizontal / Vertical)8 / 2
Binning Horizontalsame frame rate
Binning Verticalsame frame rate
Binning MethodM / C automatic
Binning Factor2 / 4 / 8
Subsampling Horizontalsame frame rate
Subsampling Verticalsame frame rate
Subsampling MethodM / C automatic
Subsampling Factor2 , 4 , 8



Model
Frame Rate Freerun Mode (in 8-bit mode)46 fps
Frame Rate Trigger (continuous)46 fps
Frame Rate Trigger (maximum)47 fps
Exposure Time (minimum ~ maximum)0.031ms ~ 2000ms
Long exposure (maximum)90000ms
Power Consumption1.6W ~ 2.9W
Image Memory128 MB



Ambient Conditions
The temperature values given below refer to the outer device temperature of the camera housing
Device Temperature During Operation
0°C ~ 55°C / 32°F ~ 131°F
Device Temperature During Storage
-20°C ~ 60°C / -4°F ~ 140°F
Humidity (relative , non-condensing)0% ~ 100%



Connectors
Interface Connector
GigE M12 , Screwable
I/O Connector
8 Pin Binder Connector
Power Supply
12V ~ 24V or PoE



Design
Lens Mount
C-Mount
IP CodeIP65/67
Dimensions H/W/L41.0mm × 53.0mm × 42.7mm
Mass175g
