N36-602-16
商品類別：iDS Ensenso

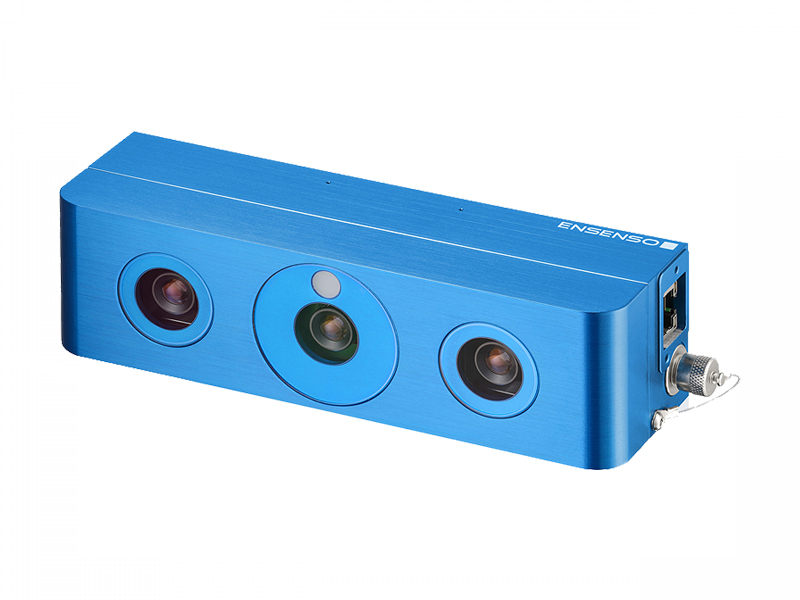

IDS Ensenso N36系列 3D 立體視覺相機
Lenses - Focal Length : 6mm
Lenses - Relative Aperture : 1.6
Vergence Angle : 2.0°
Focus Distance : 950mm
Operating Distance : 550mm ~ 3000mm
| Optics N36-602-16 | |
| Lenses - Focal Length | 6mm |
| Lenses - Relative Aperture | 1.6 |
| Vergence Angle | 2.0° |
| Baseline (Pupillary Distance) | 100mm |
Focus Distance | 950mm |
Operating Distance | 550 ~ 3000 (mm) |
| Calibration Plate - Dimensions | 390 × 390 × 3 (mm) |
| Calibration Plate - Grid Dots / Grid Spacing | 15 × 15 / 48mm |
| Specifications N36 Series | |
| Dimensions | 175 × 50 × 52 (mm) |
| Weight | 650g |
| Resolution | 1936 × 1216 (2.3 MP) |
| Frames per Second | 10 (2.3 MP) , 30 (2 × Binning) |
| Interface | Gigabit Ethernet |
| Inputs | 1 × Trigger |
| Outputs | 1 × Flash / GPIO |
| Input Voltage | 12V ~ 24V DC / PoE |
| Housing - Projector | Aluminium , IP65 / 67 |
| Temperature - Operation | 0°C ~ 40°C |
| Temperature - Storage | 0°C ~ 50°C |
| Vibration Resistance | 30 ~ 500 Hz 10g (sine) |
| Shock Resistance | 80g , 1.9ms / 25g , 6ms (half sine) |
| Software | Ensenso SDK |
IDS Ensenso N36-602-16 數據圖

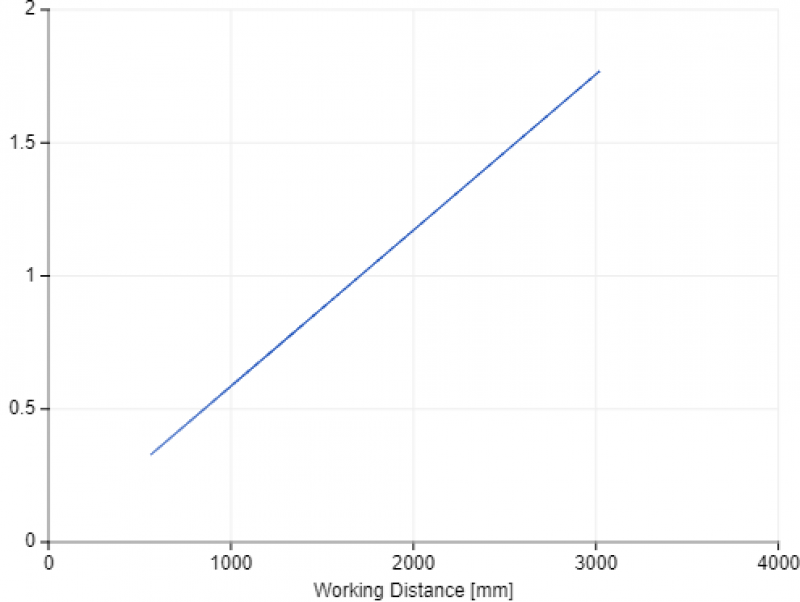

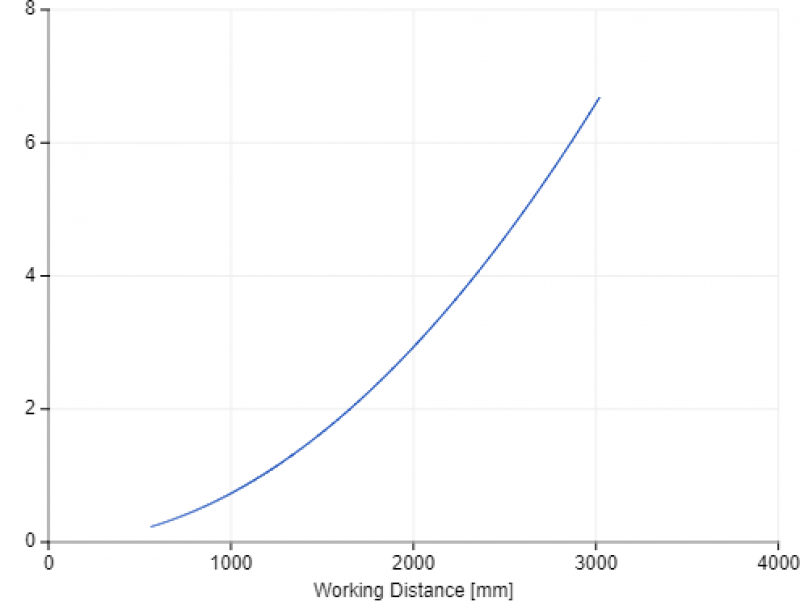

| Z-Accuracy (mm) | XY Pixel Size (mm) |
 |  |

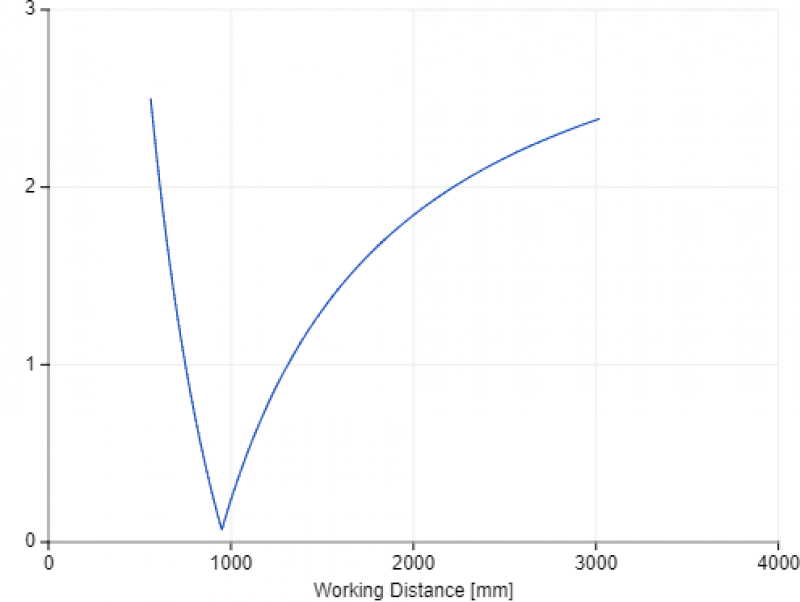

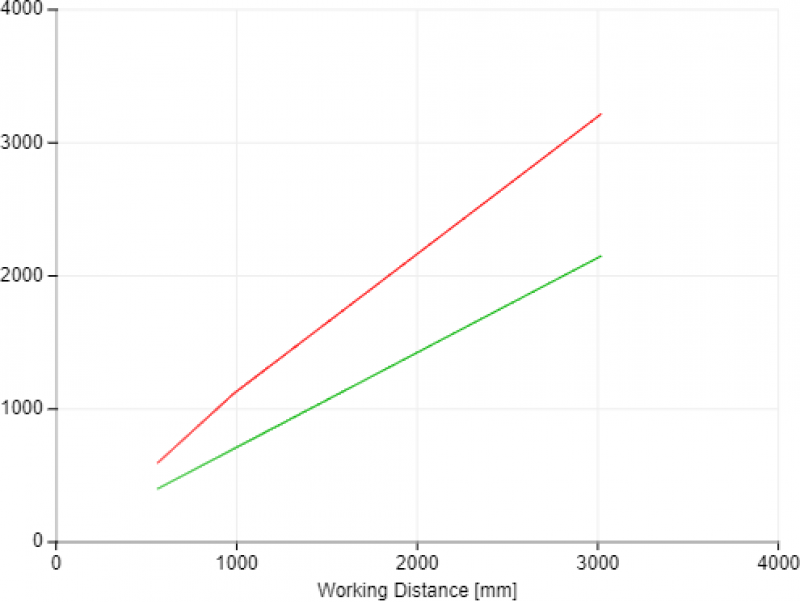

| View Field (mm) | Optics Blur (px) |
 |  |
IDS Ensenso N36-602-16 數據表
| Distance (mm) | Z-Accuracy (mm) | XY Pixel Size (mm) | View Field X (mm) | View Field Y (mm) | Optics Blur (px) |
| 600 | 0.264 | 0.351 | 641.52 | 427.29 | 2.108 |
| 700 | 0.359 | 0.410 | 765.10 | 498.51 | 1.318 |
| 800 | 0.469 | 0.469 | 888.69 | 569.72 | 0.724 |
| 900 | 0.593 | 0.527 | 1012.28 | 640.94 | 0.262 |
| 1000 | 0.733 | 0.586 | 1132.47 | 712.15 | 0.238 |
| 1100 | 0.887 | 0.644 | 1235.72 | 783.37 | 0.529 |
| 1200 | 1.055 | 0.703 | 1338.96 | 854.58 | 0.772 |
| 1300 | 1.238 | 0.762 | 1442.21 | 925.80 | 0.978 |
| 1400 | 1.436 | 0.820 | 1545.46 | 997.01 | 1.154 |
| 1500 | 1.648 | 0.879 | 1648.70 | 1068.23 | 1.307 |
| 1600 | 1.876 | 0.937 | 1751.95 | 1139.44 | 1.441 |
| 1700 | 2.117 | 0.996 | 1855.20 | 1210.66 | 1.559 |
| 1800 | 2.374 | 1.054 | 1958.44 | 1281.87 | 1.664 |
| 1900 | 2.645 | 1.113 | 2061.69 | 1353.09 | 1.758 |
| 2000 | 2.931 | 1.172 | 2164.94 | 1424.30 | 1.842 |
| 2100 | 3.231 | 1.230 | 2268.18 | 1495.52 | 1.919 |
| 2200 | 3.546 | 1.289 | 2371.43 | 1566.73 | 1.988 |
| 2300 | 3.876 | 1.347 | 2474.68 | 1637.95 | 2.052 |
| 2400 | 4.220 | 1.406 | 2577.92 | 1709.16 | 2.110 |
| 2500 | 4.579 | 1.465 | 2681.17 | 1780.38 | 2.164 |
| 2600 | 4.953 | 1.523 | 2784.42 | 1851.59 | 2.213 |
| 2700 | 5.341 | 1.582 | 2887.66 | 1922.81 | 2.259 |
| 2800 | 5.744 | 1.640 | 2990.91 | 1994.02 | 2.302 |
| 2900 | 6.162 | 1.699 | 3094.16 | 2065.24 | 2.341 |
| 3000 | 6.594 | 1.757 | 3197.41 | 2136.45 | 2.378 |
