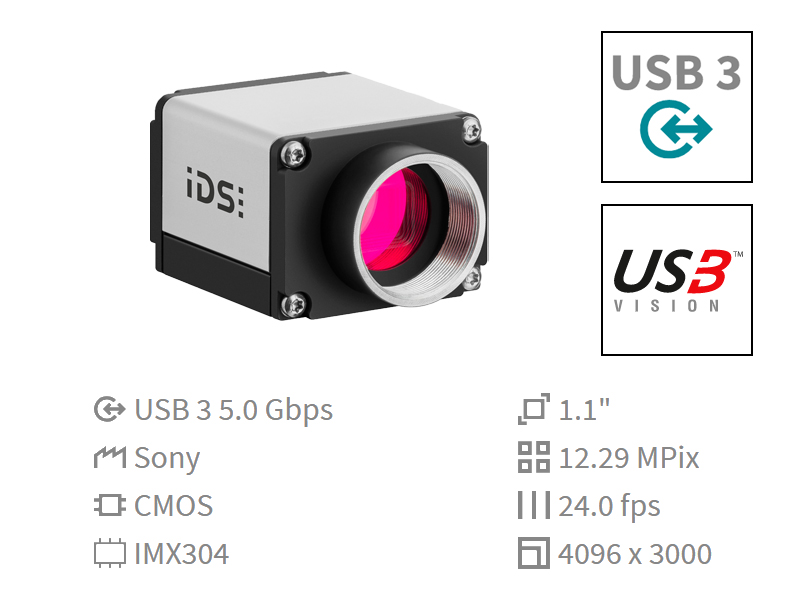

U3-3200SE-C-HQ Rev.1.2

商品類別：iDS Camera 工業相機

iDS Camera USB 3 SE系列 1229萬畫素 彩色相機

1.1" CMOS Global Shutter Sensor

Resolution : 4096 × 3000 (12.29 Mega Pixel)

Pixel Size : 3.45um

Frame Rate : 24

Color

Sensor
Sensor Type
CMOS Color
ShutterGlobal Shutter
Sensor Characteristic
Linear
Readout Mode
Progressive Scan
Pixel Class
12 MP
Resolution4096 × 3000 Pixel (12.29 Mpix)
Aspect Ratio
4 : 3
ADC12 bit
Color Depth (camera)
12 bit
Optical Sensor Class
1.1"
Optical Size14.131mm × 10.350mm
Optical Sensor Diagonal17.52mm
Pixel Size3.45um
ManufacturerSony
Sensor ModelIMX304LQR-C
Gain (master/RGB)24x / 4x
AOI Horizontalsame frame rate
AOI Verticalincreased frame rate
AOI Image Width / Step Width264 / 8
AOI Image Height / Step Width2 / 2
AOI Position Grid (Horizontal / Vertical)8 / 2
Binning Horizontalsame frame rate
Binning Verticalsame frame rate
Binning MethodM / C automatic
Binning Factor2 / 4 / 8
Subsampling Horizontalsame frame rate
Subsampling Verticalsame frame rate
Subsampling MethodM / C automatic
Subsampling Factor2 , 4 , 8



Model
Frame Rate Freerun Mode24 fps
Frame Rate Trigger (continuous)24 fps
Frame Rate Trigger (maximum)24 fps
Exposure Time (minimum ~ maximum)0.027ms ~ 2000ms
Long Exposure (maximum)60000ms
Power Consumption1.6W ~ 3.8W
Image Memory128 MB



Ambient Conditions
The temperature values given below refer to the outer device temperature of the camera housing
Device Temperature During Operation
0°C ~ 55°C / 32°F ~ 131°F
Device Temperature During Storage
-20°C ~ 60°C / -4°F ~ 140°F
Humidity (relative , non-condensing)20% ~ 80%



Connectors
Interface Connector
USB Type-C , Screwable
I/O Connector
8 Pin Hirose Connector
Power Supply
USB Cable



Design
Lens Mount
C-Mount
IP CodeIP30
Dimensions H/W/L34.0mm × 44.0mm × 47.0mm
Mass111g
