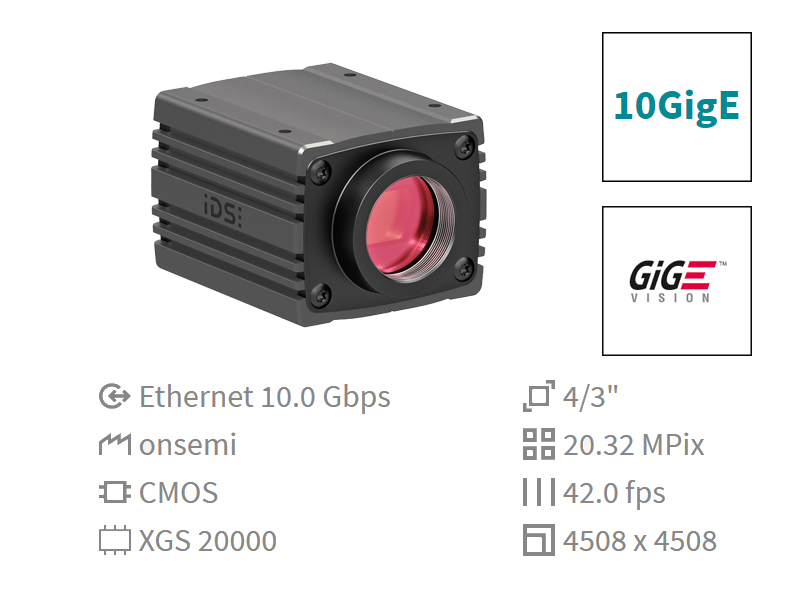

GV-77Q5WP-M-GL
商品類別：iDS Camera 工業(yè)相機(jī)
iDS Camera 10GigE Warp10系列 2032萬畫素 黑白相機(jī)
4/3" CMOS Global Shutter Sensor
Resolution : 4508 × 4508 (20.32 Mega Pixel)
Pixel Size : 3.2um
Frame Rate : 42
Mono
| Sensor | |
| Sensor Type | CMOS Mono |
| Shutter | Global Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 20 MP |
| Resolution | 4508 × 4508 Pixel (20.32 Mpix) |
| Aspect Ratio | 1 : 1 |
| ADC | 12 bit |
| Color Depth (camera) | 12 bit |
| Optical Sensor Class | 4/3" |
| Optical Size | 14.426mm × 14.426mm |
| Optical Sensor Diagonal | 20.4mm |
| Pixel Size | 3.2um |
| Manufacturer | Onsemi |
| Sensor Model | NOIX1SN020KB-GTI |
| Gain (master/RGB) | 4x / - |
| AOI Horizontal | same frame rate |
| AOI Vertical | increased frame rate |
| AOI Image Width / Step Width | 256 / 2 |
| AOI Image Height / Step Width | 1 / 1 |
| AOI Position Grid (Horizontal / Vertical) | 2 / 1 |
| Binning Horizontal | same frame rate |
| Binning Vertical | same frame rate |
| Binning Method | M / C automatic |
| Binning Factor | 2 / 4 / 8 |
| Subsampling Horizontal | same frame rate |
| Subsampling Vertical | same frame rate |
| Subsampling Method | M / C automatic |
| Subsampling Factor | 2 , 4 , 8 |
| Model | |
| Frame rate freerun mode | 42 fps |
| Frame rate trigger (continuous) | 42 fps |
| Frame rate trigger (maximum) | 42 fps |
| Exposure Time (minimum ~ maximum) | 0.037 ms ~ 2000 ms |
| Power consumption | 12.6 W - 15.9 W |
| Image Memory | 2032 MB |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 20% ~ 80% |
| Connectors | |
| Interface Connector | GigE RJ45 |
| I/O Connector | 12pin M12 connector |
| Power Supply | 12 V - 24 V or PoE+ |
| Design | |
| Lens Mount | TFL (M35 × 0.75) |
| IP Code | IP30 |
| Dimensions H/W/L | 60.0mm × 75.0mm × 94.5mm |
| Mass | 570g |
