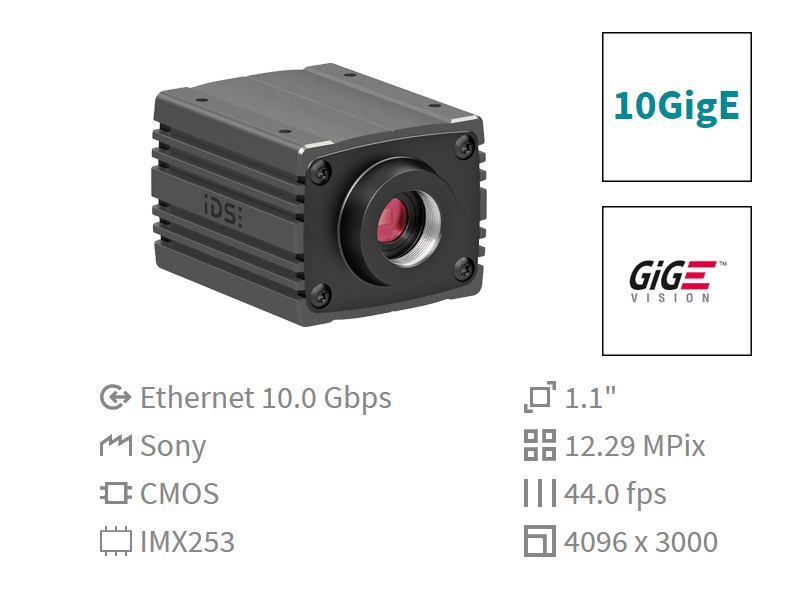

GV-7000WP-M-GL
商品類別：iDS Camera 工業(yè)相機
iDS Camera 10GigE Warp10系列 1229萬畫素 黑白相機
1.1" CMOS Global Shutter Sensor
Resolution : 4096 × 3000 (12.29 Mega Pixel)
Pixel Size : 3.45um
Frame Rate : 58
Mono
| Sensor | |
| Sensor Type | CMOS Mono |
| Shutter | Global Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 12 MP |
| Resolution | 4096 × 3000 Pixel (12.29 Mpix) |
| Aspect Ratio | 4 : 3 |
| ADC | 12 bit |
| Color Depth (camera) | 12 bit |
| Optical Sensor Class | 1.1" |
| Optical Size | 14.131mm × 10.350mm |
| Optical Sensor Diagonal | 17.52mm (1/0.91") |
| Pixel Size | 3.45um |
| Manufacturer | Sony |
| Sensor Model | IMX253LLR-C |
| Gain (master/RGB) | 24x / 4x |
| AOI Horizontal | same frame rate |
| AOI Vertical | increased frame rate |
| AOI Image Width / Step Width | 264 / 8 |
| AOI Image Height / Step Width | 1 / 1 |
| AOI Position Grid (Horizontal / Vertical) | 8 / 1 |
| Binning Horizontal | increased frame rate |
| Binning Vertical | increased frame rate |
| Binning Method | M / C automatic |
| Binning Factor | 2 / 4 / 8 |
| Subsampling Horizontal | same frame rate |
| Subsampling Vertical | same frame rate |
| Subsampling Method | M / C automatic |
| Subsampling Factor | 2 , 4 , 8 |
| Model | |
| Frame Rate Freerun Mode | 42 |
| Frame Rate Trigger (maximum) | 42 |
| Exposure Time (minimum ~ maximum) | 0.032ms ~ 2000ms |
| Long exposure (maximum) | 44000 ms |
| Power Consumption | 10W ~ 14W |
| Image Memory | 2032 MB |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 20% ~ 80% |
| Connectors | |
| Interface Connector | GigE RJ45 , Screwable |
| I/O Connector | 12 pin M12 connector |
| Power Supply | 12 V ~ 24 V or PoE+ |
| Design | |
| Lens Mount | C-Mount |
| IP Code | IP30 |
| Dimensions H/W/L | 60.0mm × 75.0mm × 94.5mm |
| Mass | 550g |
