GV-7080WP-C-HQ
商品類別：iDS Camera 工業(yè)相機

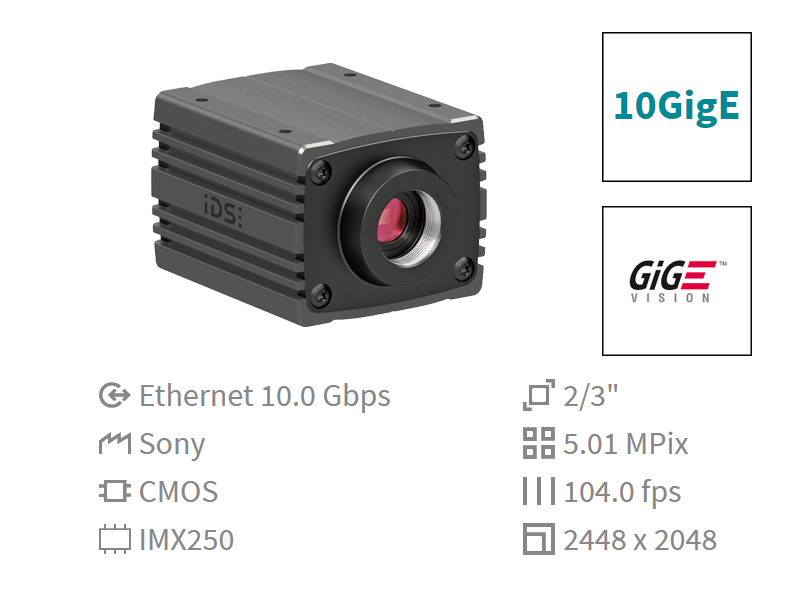

iDS Camera 10GigE Warp10系列 501萬畫素 彩色相機
2/3" CMOS Global Shutter Sensor
Resolution : 2448 × 2048 (5.01 Mega Pixel)
Pixel Size : 3.45um
Frame Rate : 98
Color
| Sensor | |
| Sensor Type | CMOS Color |
| Shutter | Global Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 5 MP |
| Resolution | 2448 × 2048 Pixel (5.01 Mpix) |
| Aspect Ratio | 5 : 4 |
| ADC | 12 bit |
| Color Depth (camera) | 12 bit |
| Optical Sensor Class | 2/3" |
| Optical Size | 8.446mm × 7.066mm |
| Optical Sensor Diagonal | 11.01mm (1/1.45") |
| Pixel Size | 3.45um |
| Manufacturer | Sony |
| Sensor Model | IMX250LQR-C |
| Gain (master/RGB) | 24x / 4x |
| AOI Horizontal | same frame rate |
| AOI Vertical | increased frame rate |
| AOI Image Width / Step Width | 264 / 8 |
| AOI Image Height / Step Width | 1 / 1 |
| AOI Position Grid (Horizontal / Vertical) | 8 / 1 |
| Binning Horizontal | same frame rate |
| Binning Vertical | same frame rate |
| Binning Method | M / C automatic |
| Binning Factor | 2 / 4 / 8 |
| Subsampling Horizontal | same frame rate |
| Subsampling Vertical | same frame rate |
| Subsampling Method | M / C automatic |
| Subsampling Factor | 2 , 4 , 8 |
| Model | |
| Frame rate freerun mode | 98 |
| Frame rate trigger (maximum) | 98 |
| Exposure Time (minimum ~ maximum) | 0.036 ms ~ 2000 ms |
| Long exposure (maximum) | 90000 ms |
| Power consumption | 10 W - 14 W |
| Image Memory | 2032 MB |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 20% ~ 80% |
| Connectors | |
| Interface Connector | GigE RJ45 , Screwable |
| I/O Connector | 12 pin M12 connector |
| Power Supply | 12 V - 24 V or PoE+ |
| Design | |
| Lens Mount | C-Mount |
| IP Code | IP30 |
| Dimensions H/W/L | 60.0mm × 75.0mm × 94.5mm |
| Mass | 550g |
