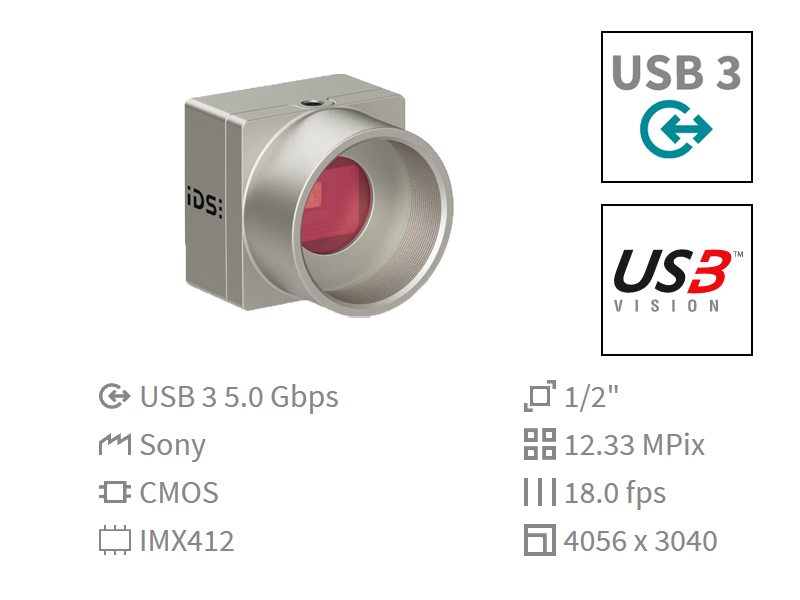

U3-38L0XCP-C-HQ Rev.1.2
商品類別：iDS Camera 工業(yè)相機
iDS Camera USB 3 XCP系列 1233萬畫素 彩色相機
1/2" CMOS Rolling Shutter Sensor
Resolution : 4056 × 3040 (12.33 Mega Pixel)
Pixel Size : 1.55um
Frame Rate : 18
Color
| Sensor | |
| Sensor Type | CMOS Color |
| Shutter | Rolling Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 12 MP |
| Resolution | 4056 × 3040 Pixel (12.33 Mpix) |
| Aspect Ratio | 4 : 3 |
| ADC | 12 bit |
| Color Depth (camera) | 12 bit |
| Optical Sensor Class | 1/2" |
| Optical Size | 6.287mm × 4.712mm |
| Optical Sensor Diagonal | 7.86mm (1/2.04") |
| Pixel Size | 1.55 um |
| Manufacturer | Sony |
| Sensor Model | IMX412-AACK-D |
| Gain (master/RGB) | - / - |
| AOI Horizontal | same frame rate |
| AOI Vertical | increased frame rate |
| AOI Image Width / Step Width | 24 / 12 |
| AOI Image Height / Step Width | 32 / 8 |
| AOI Position Grid (Horizontal / Vertical) | 2 / 4 |
| Binning Horizontal | increased frame rate |
| Binning Vertical | increased frame rate |
| Binning Method | M / C automatic |
| Binning Factor | 2 |
| Subsampling Horizontal | - |
| Subsampling Vertical | - |
| Subsampling Method | - |
| Subsampling Factor | - |
| Model | |
| Frame Rate Freerun Mode | 18 fps |
| Frame Rate Trigger (continuous) | 18 fps |
| Frame Rate Trigger (maximum) | 18 fps |
| Exposure Time (minimum ~ maximum) | 0.032ms ~ 1900ms |
| Power Consumption | 0.5W ~ 1W |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 20% ~ 80% |
| Connectors | |
| Interface Connector | USB 3.0 micro-B , Screwable |
| I/O Connector | 8 Pin Connector |
| Power Supply | USB Cable |
| Design | |
| Lens Mount | C-Mount |
| IP Code | IP30 |
| Dimensions H/W/L | 29.0mm × 29.0mm × 17.0mm |
| Mass | 61g |
