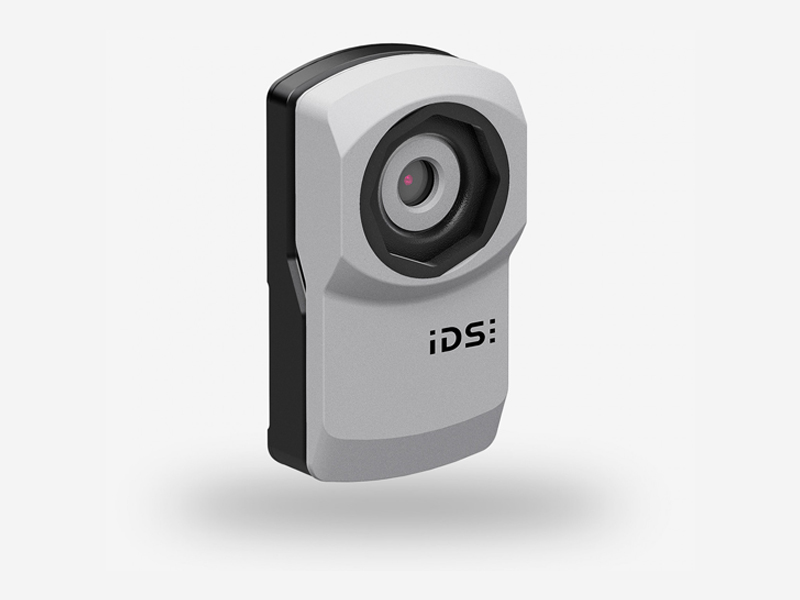

U3-36L0XC
商品類別：iDS Camera 工業相機
相機和物體之間的距離不斷變化，iDS XC 自動對焦相機也能確保完美清晰的影像
Full Resolution 1300萬畫素 , FPS 20
24倍數字變焦、自動白平衡、色彩校正 等實用功能
尺寸 32 × 61 × 19 mm，重量 42g
USB 3.0 Micro-B Interface Connector
| Sensor | |
| Sensor Type | CMOS Color |
| Shutter | Rolling Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 13 MP |
| Resolution | 4200 × 3120 Pixel (13.10 Mpix) |
| Aspect Ratio | 4 : 3 |
| ADC | 10 bit |
| Color Depth (camera) | 10 bit |
| Optical Sensor Class | 1/3.2" |
| Optical Size | 4.620mm × 3.432mm |
| Optical Sensor Diagonal | 5.76mm (1/2.78") |
| Pixel Size | 1.1um |
| Manufacturer | Onsemi |
| Sensor Model | AR1335CSSC32SMD20 |
| Gain (master/RGB) | 45.3x / 8x |
| AOI Horizontal | same frame rate |
| AOI Vertical | increased frame rate |
| AOI Image Width / Step Width | 204 / 12 |
| AOI Image Height / Step Width | 102 / 2 |
| AOI Position Grid (Horizontal / Vertical) | 4 / 2 |
| Binning Horizontal | - |
| Binning Vertical | - |
| Binning Method | - |
| Binning Factor | - |
| Subsampling Horizontal | - |
| Subsampling Vertical | - |
| Subsampling Method | - |
| Subsampling Factor | - |
| Model | |
| Frame Rate Freerun Mode | 20 |
| Frame Rate Trigger (maximum) | - |
| Exposure Time (minimum ~ maximum) | 0.030ms ~ 955ms |
| Long Exposure (maximum) | 955ms |
| Power Consumption | 0.4W - 1.4W |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 20% ~ 80% |
| Connectors | |
| Interface Connector | USB 3.0 micro-B , Screwable |
| I/O Connector | - |
| Power Supply | USB Cable |
| Design | |
| Lens Mount | - |
| IP Code | IP30 |
| Dimensions H/W/L | 60.9mm × 31.9mm × 19.0mm |
| Mass | 42g |
