ImageIR 9400 hs
商品類別：InfraTec 紅外線熱像儀

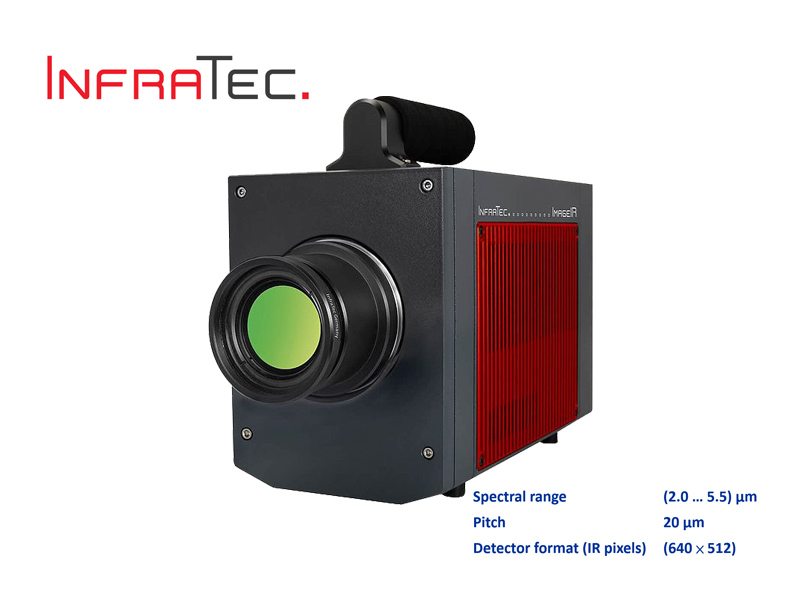

Infratec High-speed in VGA format ImageIR 9400 hs
Spectral range : (2.0 … 5.5)μm
Pitch : 20μm
Detector format (IR pixels) : (640 × 512)
| Feature | High-speed in VGA format |
| Spectral range | (2.0 … 5.5)μm |
| Pitch | 20μm |
| Detector | InSb |
| Detector format (IR pixels) | (640 × 512) |
| Detector format with optomechanical MicroScan | - |
| Temperature measuring range | (-40 … 1,500)°C , up to 3,000 °C* |
| Measurement accuracy | ±1°C or ±1% |
| Temperature resolution @ 30°C | Better than 0.02K |
| Max. frame rate (full / half / quarter / sub frame)* | Up to 622 / 1,053 / 1,615 /3,343 Hz |
| Max. frame rate with high-speed mode | - |
| Dynamic range | Up to 16 bit* |
| Integration time | (1 … 20,000)µs |
| Filter wheel* | Up to 6 positions |
| Aperture wheel* | Up to 5 positions |
| Interfaces | GigE , 10 GigE , CAMLink , HDMI* |
| Trigger | 4 IN / 2 OUT , TTL |
| Analog signals* , IRIG-B* | 3 IN / 2 OUT, yes |
| Dimensions (mm)* | 241 × 123 × 160 |
| Weight (without lens) | 4.3kg |
