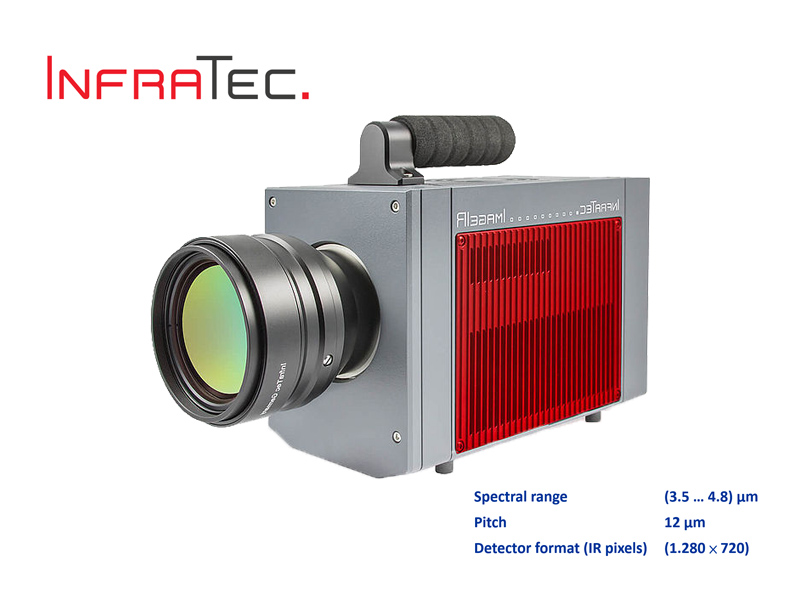

ImageIR 9500
商品類別：InfraTec 紅外線熱像儀
Infratec HD image quality with MCT detectors ImageIR 9500
Spectral range : (3.5 … 4.8)μm
Pitch : 12μm
Detector format (IR pixels) : (1.280 × 720)
| Feature | HD image quality with MCT detectors |
| Spectral range | (3.5 … 4.8)µm |
| Pitch | 12µm |
| Detector | MCT |
| Detector format (IR pixels) | (1.280 × 720) |
| Detector format with optomechanical MicroScan | (2,560× 1,440) |
| Temperature measuring range | (-20 … 1,200)°C , up to 3,000°C* |
| Measurement accuracy | ±1°C or ±1% |
| Temperature resolution @ 30°C | Better than 0.025K |
| Max. frame rate (full / half / quarter / sub frame)* | Up to 120 / 446/ 1,517 / 16,053 Hz |
| Max. frame rate with high-speed mode | - |
| Dynamic range | 14 bit |
| Integration time | (1 … 20,000)µs |
| Filter wheel* | Up to 6 positions |
| Aperture wheel* | Up to 6 positions |
| Interfaces | GigE*, 10 GigE , 2 × CAMLink* , HDMI* |
| Trigger | 4 IN / 2 OUT , TTL |
| Analog signals* , IRIG-B* | 2 IN / 2 OUT , yes |
| Dimensions (mm)* | 241 × 123 × 160 |
| Weight (without lens) | 4.7kg |
