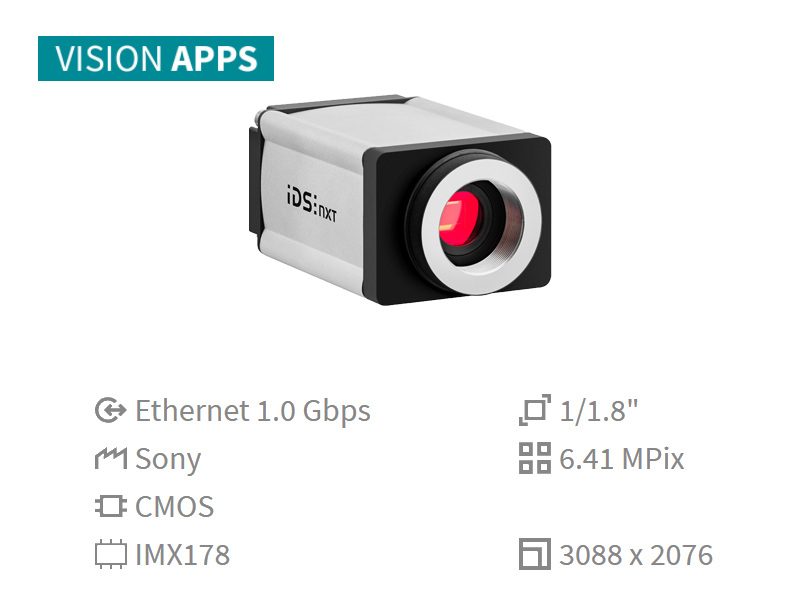

IDS NXT rome Rev.1.2 RS18064M-GL
商品類別：iDS NXT AI深度學習 相機
iDS NXT Camera 641萬畫素 AI深度學習 黑白相機
1/1.8" CMOS Rolling Shutter Sensor
Resolution : 3088 × 2076 (6.41 Mega Pixel)
Pixel Size : 2.4um
Frame Rate : 5.0
Mono
| Sensor | |
| Sensor Type | CMOS Mono |
| Shutter | Rolling Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | Progressive Scan |
| Pixel Class | 6 MP |
| Resolution | 3088 × 2076 Pixel (6.41 Mpix) |
| Aspect Ratio | 3 : 2 |
| ADC | 12 bit |
| Color Depth (camera) | 8 bit |
| Optical Sensor Class | 1/1.8" |
| Optical Size | 7.411mm × 4.982mm |
| Optical Sensor Diagonal | 8.93mm (1/1.79") |
| Pixel Size | 2.4um |
| Manufacturer | Sony |
| Sensor Model | IMX178LLJ-C |
| Gain (master/RGB) | 14.5x / 5x |
| AOI Horizontal | - |
| AOI Vertical | - |
| AOI Image Width / Step Width | - / - |
| AOI Image Height / Step Width | - / - |
| AOI Position Grid (Horizontal / Vertical) | - / - |
| Binning Horizontal | - |
| Binning Vertical | - |
| Binning Method | - |
| Binning Factor | - |
| Subsampling Horizontal | - |
| Subsampling Vertical | - |
| Subsampling Method | - |
| Subsampling Factor | - |
| Model | |
| Frame Rate Freerun Mode (in 8-bit mode) | 5.0 fps |
| Frame Rate Trigger (continuous) | 5.0 fps |
| Frame Rate Trigger (maximum) | 5.0 fps |
| Exposure Time (minimum ~ maximum) | 0.084ms ~ 2000ms |
| Power Consumption | 6W ~ 12W |
| Image Memory | 128MB |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | 0% ~ 80% |
| Connectors | |
| Interface Connector | GigE M12 , Screwable |
| I/O Connector | 12 Pin M12 Connector |
| Power Supply | 12V ~ 24V or PoE |
| Design | |
| Lens Mount | C-Mount |
| IP Code | IP65/67 |
| Dimensions H/W/L | 41.0mm × 53.0mm × 75.0mm |
| Mass | 281g |
